3d cad model for new 1w Meshtastic lora

WisBlock
1

Please include the following information, in order for us to help you as effectively as possible.

  • What product do you wish to discuss? RAK4631, RAK3372, RAK11200, RAK11310, RAK11722?
    RAK13302, 19007

Is there a 3d cad model for the new 1w Lora module combination of the RAK19007 and RAK13302?

2

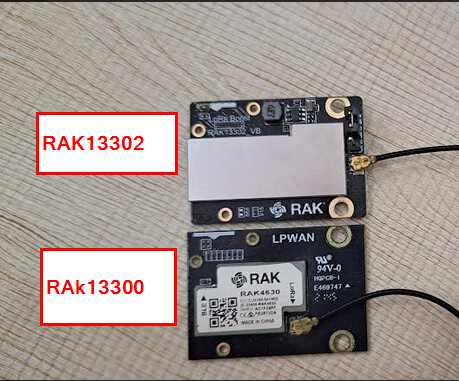

Not yet uploaded, but for a start, you can use the RAK13300 STEP file

Same module dimensions, height is different due to the jumpers and antenna connector location is different.

The RAK13302 STEP file should be available within this week in the same folder.


3

Uploaded to our Download Center: https://downloads.rakwireless.com/3D_File/WisBlock/3D_RAK13302.stp

4

Excellent! Many thanks!!!

I tried loading into FreeCAD and it worked fine!

5

Hello!

Is there any chance you could release a STEP file with the whole 1W assembly (19007/3401/13302) as a single combined unit?

Thank you!

6

Welcome to the forum @txkbaldlaw

You can download the STEP files for the RAK4631 (RAK3401 has same body), RAK19007 and RAK13302 from our Download Center and put them together by yourself.

We do not have have STEP files for module combinations (would be an endless list).

1 Like
