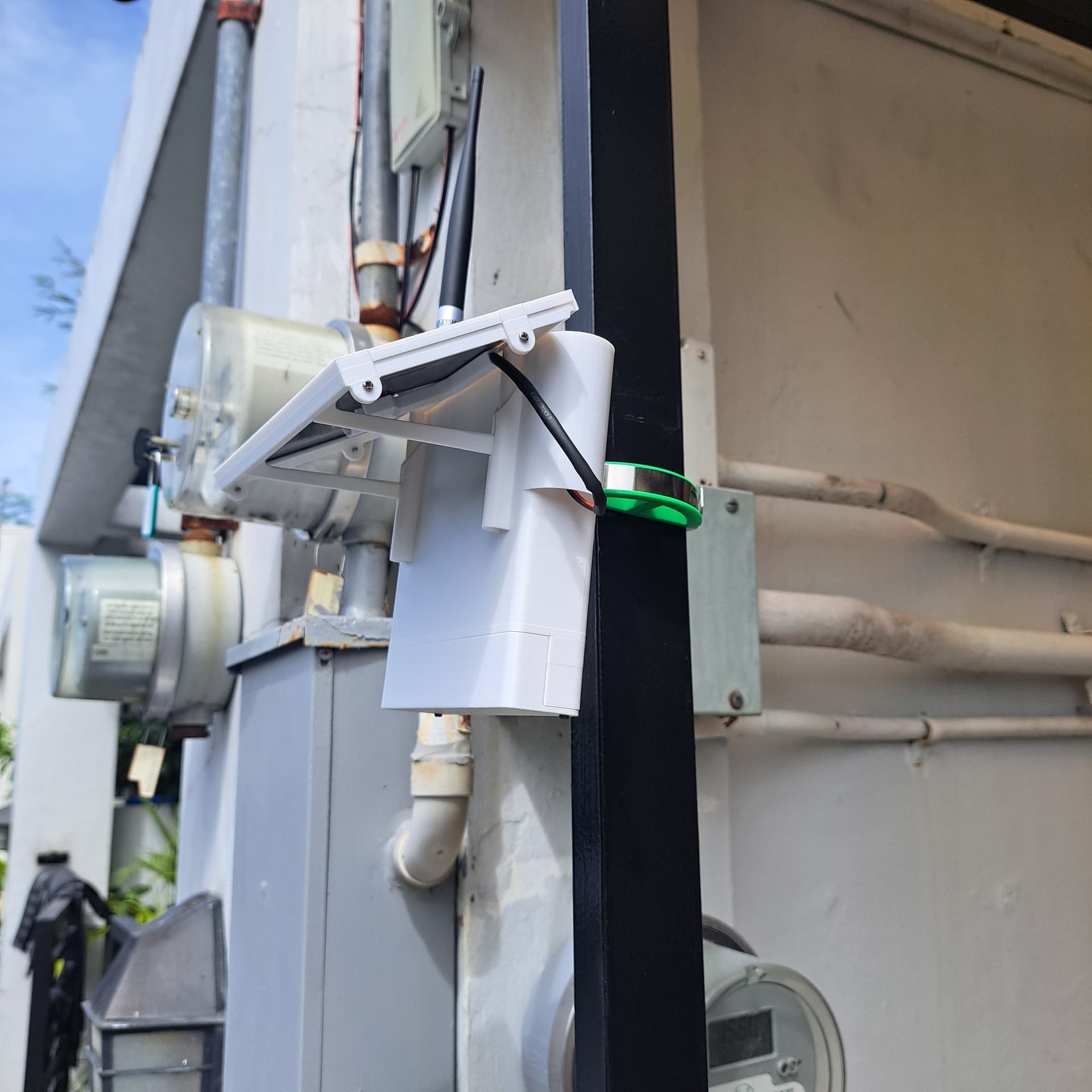

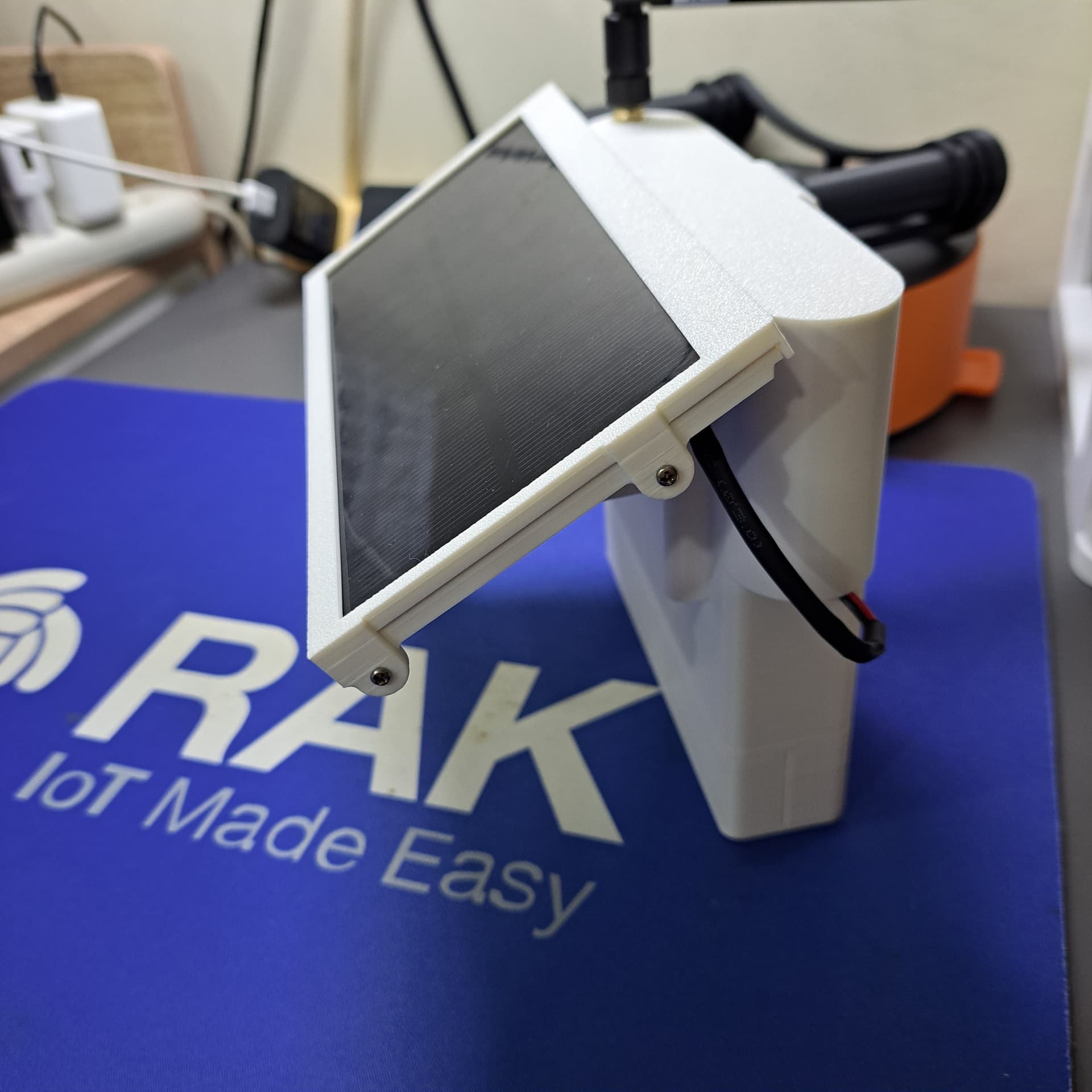

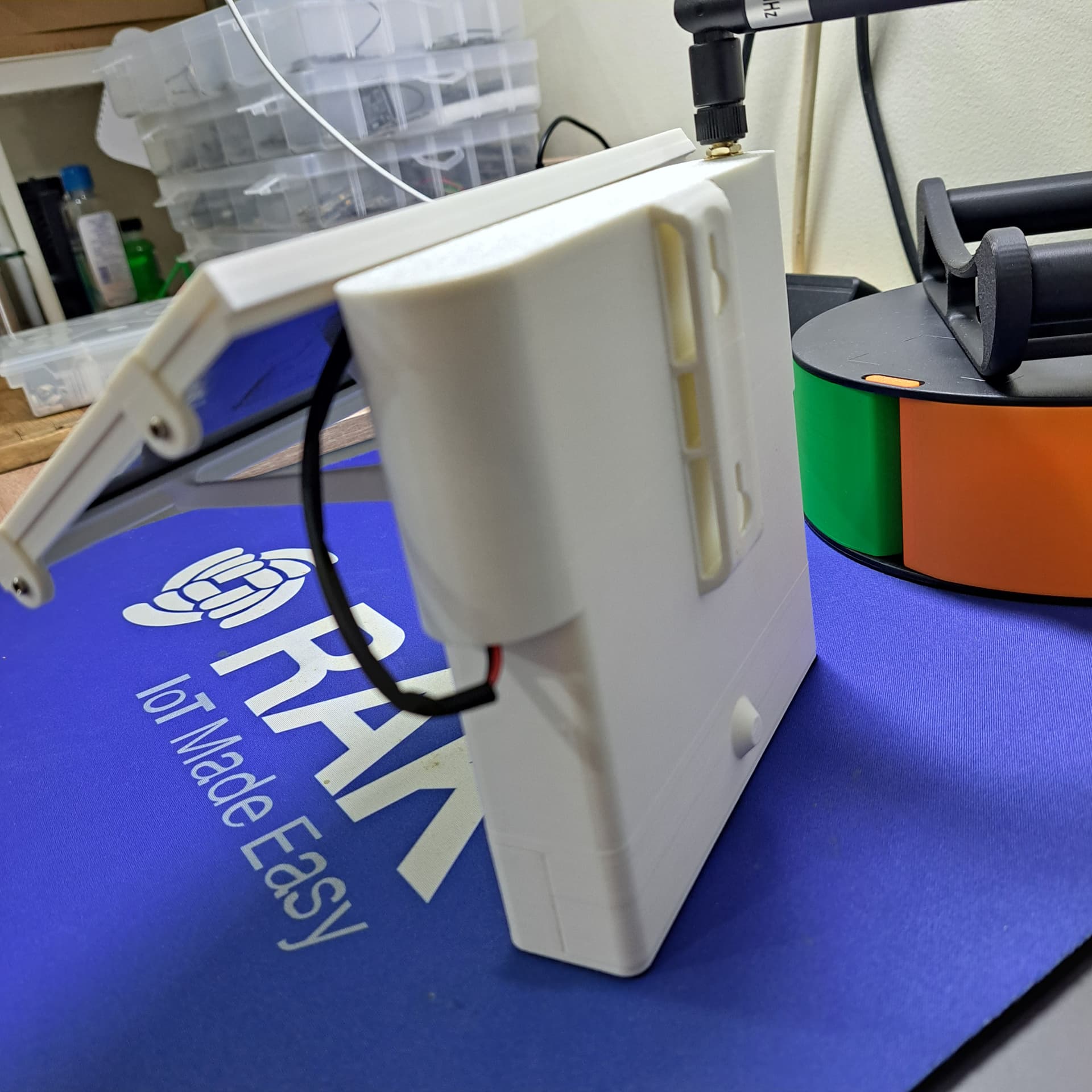

This and other 3D printable enclosures for WisBlock and WisMesh Meshtastic devices are available in MakerWorld
1 Like
Nice outdoor WisBlock/WisMesh shell share. Before the first print, open the STL once and measure a known board outline / antenna keep-out against the physical module so scale isn’t off. A browser STL viewer is enough for that check. CADProps opens STL/STEP among ~92 extensions; natives on CADProps servers. STL Viewer Online: Mesh Dimensions, Area & Volume | CADProps
Measuring a known board outline against the physical module before printing is solid advice for these WisBlock shells. I’d also check the antenna keep-out and any gasket or lid clearance in the viewer, since those tolerances matter more than overall scale. Easy to miss if you only eyeball the preview.
Checking the board outline and antenna keep-out in the viewer before printing makes sense, especially for the lid and gasket tolerances where small errors compound. One thing I’d add: also verify the wall thickness around the mounting holes, since that’s another spot where a model can look fine in preview but be too thin for outdoor use. The point about not trusting the overall scale alone is the key takeaway here.
The wall-thickness point around the mounting holes is worth stressing for outdoor prints—thin bosses tend to crack once screws are torqued or the plastic sees UV and temperature swings. I’d treat that alongside the lid and gasket clearance you both mention, since a model can pass the outline check yet still fail at fasteners. Checking those localized features in the same viewer pass keeps it efficient. Antenna keep-out remains the one I’d verify most carefully, since it affects performance as much as fit.
