Antena irradiation pattern

WisBlock
1

Please include the following information, in order for us to help you as effectively as possible.

  • What product do you wish to discuss? RAK4631

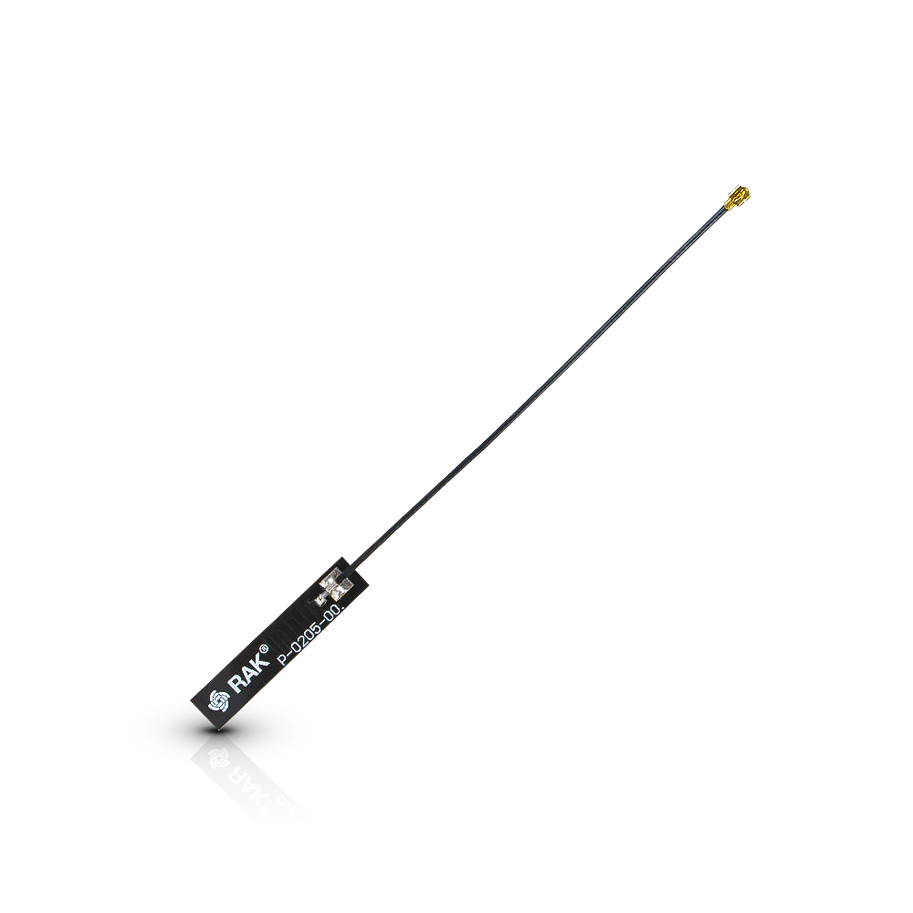

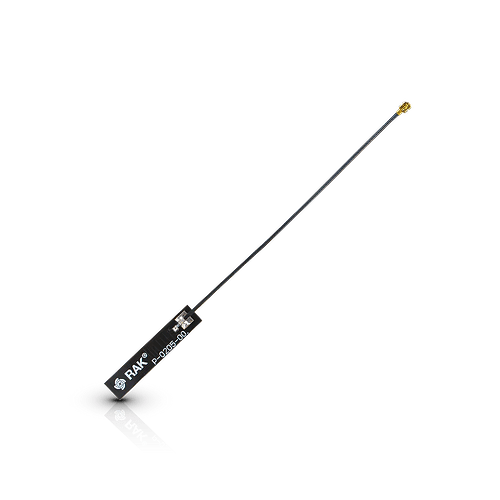

I am looking for a “Antena irradiation pattern” for the antena PCB Antenna for LoRa

Could you help with the azimuth and elevation graphics?

image913×913 59.3 KB

2

Here are the datasheets for the antennas Download Center

RAK_PCB_Antenna_for_LoRa_863-870_MHz_(RAKARB04)_Datasheet.pdf (637.4 KB)
RAK_PCB_Antenna_for_LoRa_902-928_MHz_(RAKARB03)_Datasheet.pdf (617.5 KB)

3

Thank you by your answer, but the documentation that you sent don´t have elevation and azimuth diagrams.

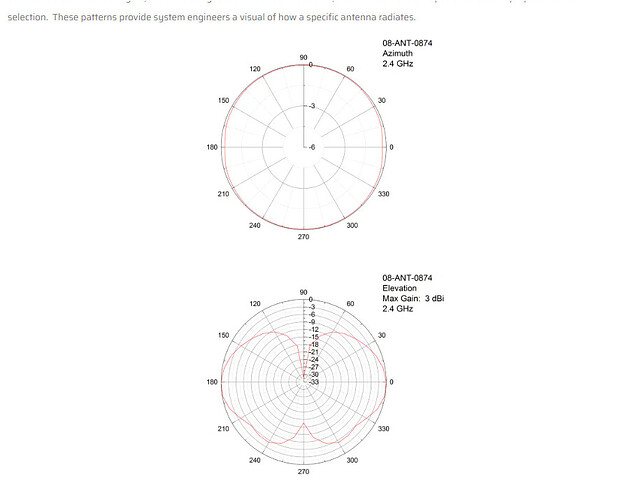

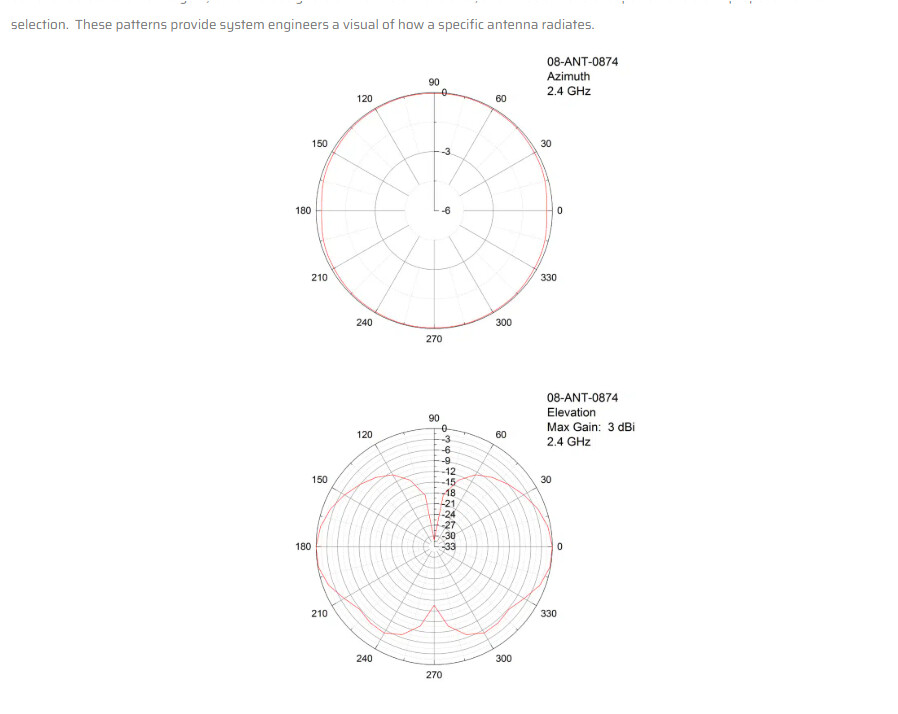

Let me give a example:

image898×714 59.8 KB

4

That’s the only datasheet we have.
No additional information available.

5

Thank you by your answer.

The radiation pattern is very important to choose the best antenna position for the coverage expected, or at least to understand what kind of coverage limitation that it will be expected when you understand what is the radiation pattern versus the antenna instalation position.

Thank you anyway.

Regards,

Claudio
