What product do you wish to discuss?
RAK4631 Core Module, RAK19007 Base Board, RAK5804 IO Extension Module
What firmware are you using?
Arduino BSP (Planning phase - no firmware written yet)
What firmware version?
N/A (Hardware concept check before purchase)
Computer OS?
Windows 11 (Arduino IDE 2.x planned)
What Computer OS version?
Windows 11 Pro
How often does the problem happen?
N/A (Pre-purchase hardware validation)
How can we replicate the problem?
N/A (No issue yet - seeking advice before building)
Provide source code if custom firmware is used or link to example:
N/A (Planning phase - will use RAK Arduino examples as base)
PROJECT DESCRIPTION:
Hello RAK Community,
I am planning an agricultural field test with autonomous LoRaWAN sensor nodes.
The nodes will be deployed outdoors with solar + battery power. I want to avoid
soldering and plan to use Wago 221 splicing connectors for sensor connections.
DS18B20 Temperature Sensor (waterproof probe, 1-Wire protocol)
WIRING CONCEPT (via Wago 221 clamps, no soldering):
βββββββββββββββββββββββββββββ
I plan to connect the RAK5804 to the sensors using Wago clamps:
β’ Soil Moisture VCC β 3.3V from RAK5804
β’ Soil Moisture GND β GND from RAK5804
β’ Soil Moisture Analog-Out β AIN1 on RAK5804
POWER MANAGEMENT:
βββββββββββββββββββββββββββββ
β’ Nodes will sleep between measurements (target: 15-30 min interval)
β’ Need to survive winter with limited sunlight (Germany/Europe)
β’ Gateway will be offline (local LoRaWAN server, no internet)
MY QUESTIONS:
Is the RAK5804 the right choice to read an analog sensor (AIN1) and a
digital 1-Wire sensor (IO1) simultaneously with the RAK4631?
Are there any known issues with this specific hardware combination
(RAK19007 + RAK4631 + RAK5804)?
For the DS18B20: Is IO1 on the RAK5804 suitable for 1-Wire protocol,
or should I use a different GPIO pin?
Power consumption: Has anyone tested deep sleep current with this setup?
I need to ensure the node can survive 7+ days without sun.
Alternative: Would RAK5811 (Analog Input Module) + RAK13002 (GPIO) be
more reliable for this use case? (I prefer screw terminals over Wago if
itβs more robust)
Any recommendations for the local LoRaWAN gateway setup? I plan to use
a RAK7289 with internal network server and local data logging.
ADDITIONAL NOTES:
β’ Region: EU868 (Germany)
β’ Duty Cycle: Will stay within 1% limit (sending every 15-30 minutes)
β’ Initial Deployment: 2 nodes + 1 gateway (proof of concept)
β’ Full Scale: 30 nodes + 2 gateways
β’ Data: Local storage only (no internet/cloud)
Thanks in advance for your advice! Any corrections to my hardware plan are
greatly appreciated before I place the order.
Thanks for considering WisBlock on this project. To answer your questions:
This will work ok. No issue on using AIN1 and IO1 together.
Combining these three modules has no issue - 1 core, 1 base and 1 interface.
I am not aware that DS18B20 works now in RAK4631-R (need to tag @beegee for confirmation). If it doesnβt work, you have to get RAK4631 with Arduino BSP.
Deep sleep is supported by RAK4631 (RUI3 or Arduino). As for 7days it will depend on the sleep and active current. On RAK5804, if you utilize the 3.3V_S which can be disconnected by IO2, you can fully disconnect your two sensors during sleep but will require resoldering a resistor on the RAK5804.
Your current setup (RAK19007 + RAK4631 + RAK5804) will work and much simpler IMHO.
I am not sure whether I tested the DS18B20 with RUI3 and RAK4630, but there is an example for the RAK3372 (STM32WLE5 MCU) and the DS18B20 in our RUI3-Best-Practices repository.
The RAK3372 would have an even lower sleep current than the RAK4631 and could be a good choice if you do not need BLE/Bluetooth. But the RAK3372 is only supported by RUI3. We do not have support for an Arduino BSP for it.
Since the zero-reading test was on the RAK4631-R, is the standard RAK4631 (Arduino BSP) with the classic OneWire library confirmed working with DS18B20? Since the hardware is identical, we just want to confirm itβs firmware-specific, not a hardware issue.
On the resistor re-soldering for fully disconnecting 3.3V_S via IO2 on the RAK5804: I have limited soldering experience. Is that resistor fine-pitch enough to be risky for a beginner, or manageable with a basic iron and patience? Would you recommend skipping it and accepting the higher sleep current instead?
For the gateway: weβre running a Raspberry Pi alongside it in the field (no internet/WiFi, maybe cellular as backup) to log data locally. Is the RAK7289V2 a good fit given its built-in local network server, or would another model integrate more cleanly with a local Pi setup? Any pointers on getting data from the gateway onto the Piβs storage without internet would help a lot.

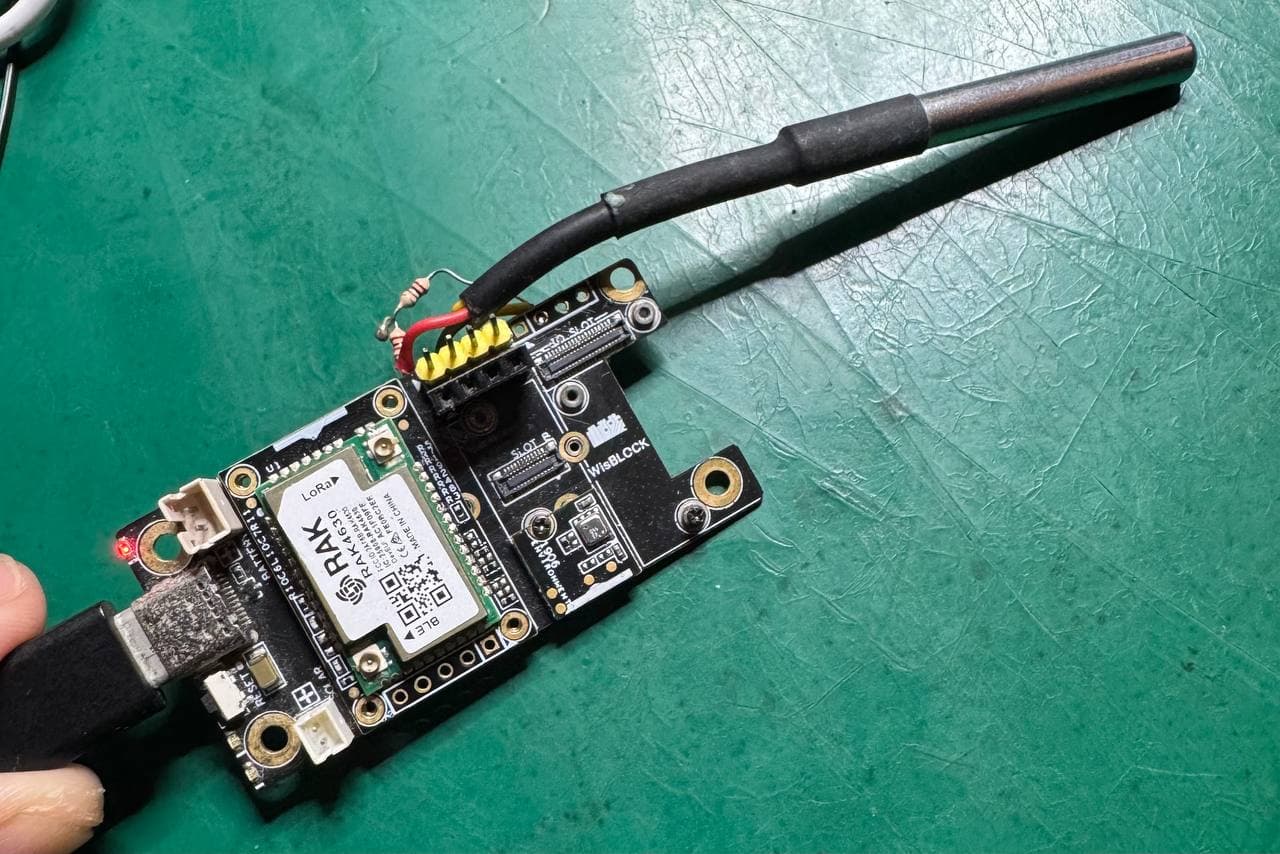

Long time ago (2024) I tested DS18B20 on a RAK4631, but I donβt remember the results.
Here is the PlatformIO project (I am not using Arduino IDE, sorry).
But should compile once your rename the βsrc/main.cppβ file to an .INO file.
Library used at that time was robtillaart/DS18B20
Thanks again for the detailed help.
But before we place the order: since this is our first project with RAK/WisBlock, how would you personally configure a solar-powered agricultural field test like this?
If thereβs no better alternative setup youβd suggest, weβll go ahead and order the components as planned (RAK19007 + RAK4631 (Arduino BSP) + RAK5804 + solar/LiPo + RAK7268) and start testing once the hardware arrives.
These components build a reliable agriculture sensor eco system, independent of permanent power supply with the solar battery.
Easy to setup, ready for LoRaWAN with optional fallback to cellular communication.
But of course that is a little bit more expensive.
