Hello all, does anyone know if it’s possible to swap the RAK3401 Core and RAK13302 1W LoRa Booster over to the RAK19001 Dual IO Base board? I’d like to build a Meshtastic node that has the 1 Watt power and PoE Ethernet (RAK13800/RAK19018), but it appears that nothing is detected in the second IO slot.
Seeing as the 1W Booster Kit is pretty new, will dual IO be supported with the RAK3401 Core in the future? Or, is there a different Core or Base I should be using to get dual IO slots?
Thanks!
Welcome to the forum @phaux
It is not a problem of the 1W transceiver or the RAK19001 Base Board.
Both the 1W transceiver and the Ethernet module are using the same SPI port. And there is a conflict in the used GPIO’s as well.
They cannot be used together.
Results of the WisBlock IO mapper (available for download ==> WisBlock Pin.
RAK13300 is using the same interface as RAK13302:
Ah, okay. I’m still pretty new with the WisBlock ecosystem and hadn’t seen that tool yet.
I’m guessing the conflicting SPI and GPIO is a physical design choice and can’t be easily changed, and there’s probably no plans at this time to make a compatible RAK13800?
No plans at the moment as it would require to redesign either the modules or the Base Board.
So I also was interested in this and have already received parts. If I accept the fact that I cannot utilize both IO modules, but if I have both installed (1W in Slot A, Ethernet in Slot B) will there be conflict? I suppose so, mostly because of the SPI CS. I would really like to power this node over PoE (not having ethernet data is acceptable), but I am not sure that will be possible with the 1W installed.
Welcome to the forum @destroyer99

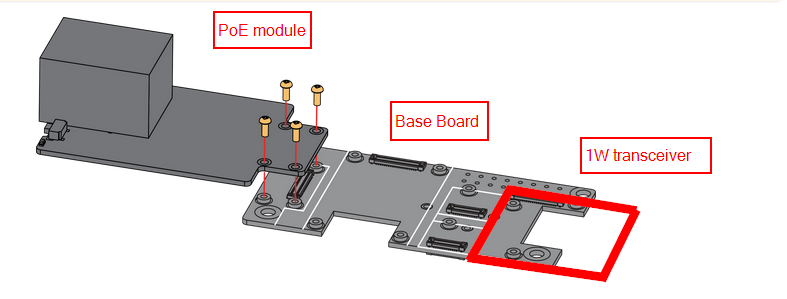

If you want to use the 1W transceiver with PoE and no Ethernet, you can use a RAK19010 Base Board with Power Slot Module RAK19017
But the combination is very long and does not fit into our Unify Enclosures.
