Hello,
I still haven’t been able to display data on my Field Tester Pro.
I am using chirpstack and datacake.
Please see all details - Steps from tester guide and also copied updated decoders from RakWireless Github.

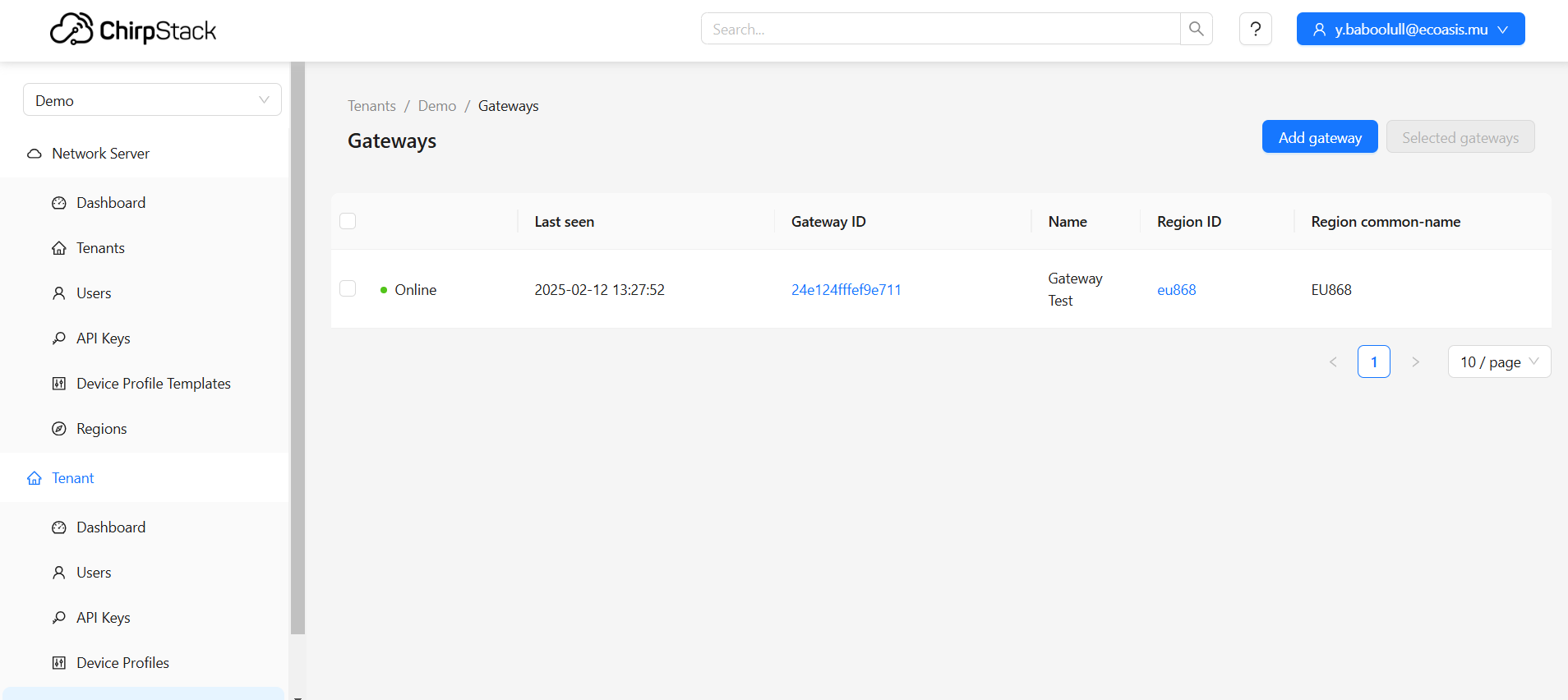

My Gateway on Chirpstack:

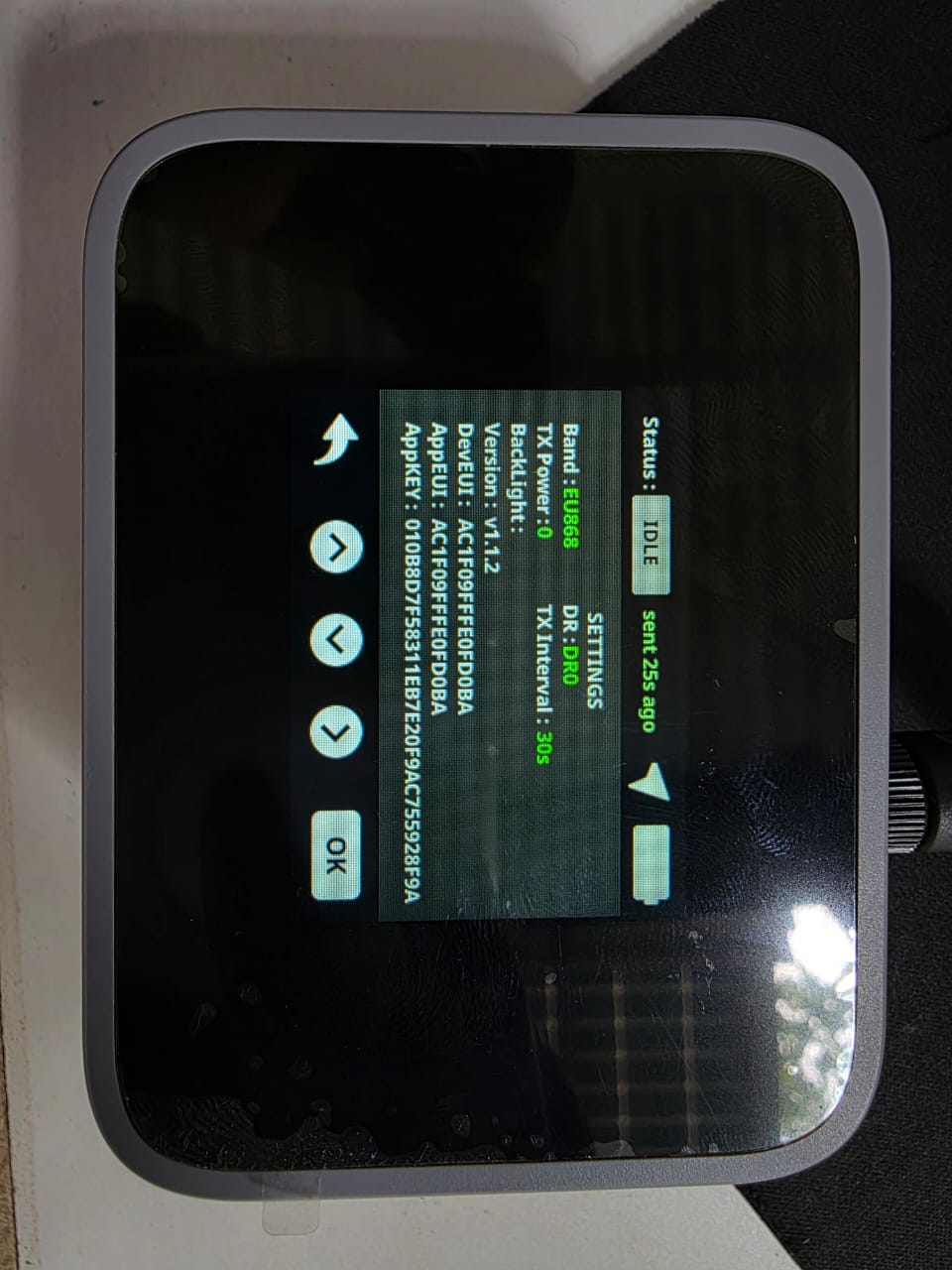

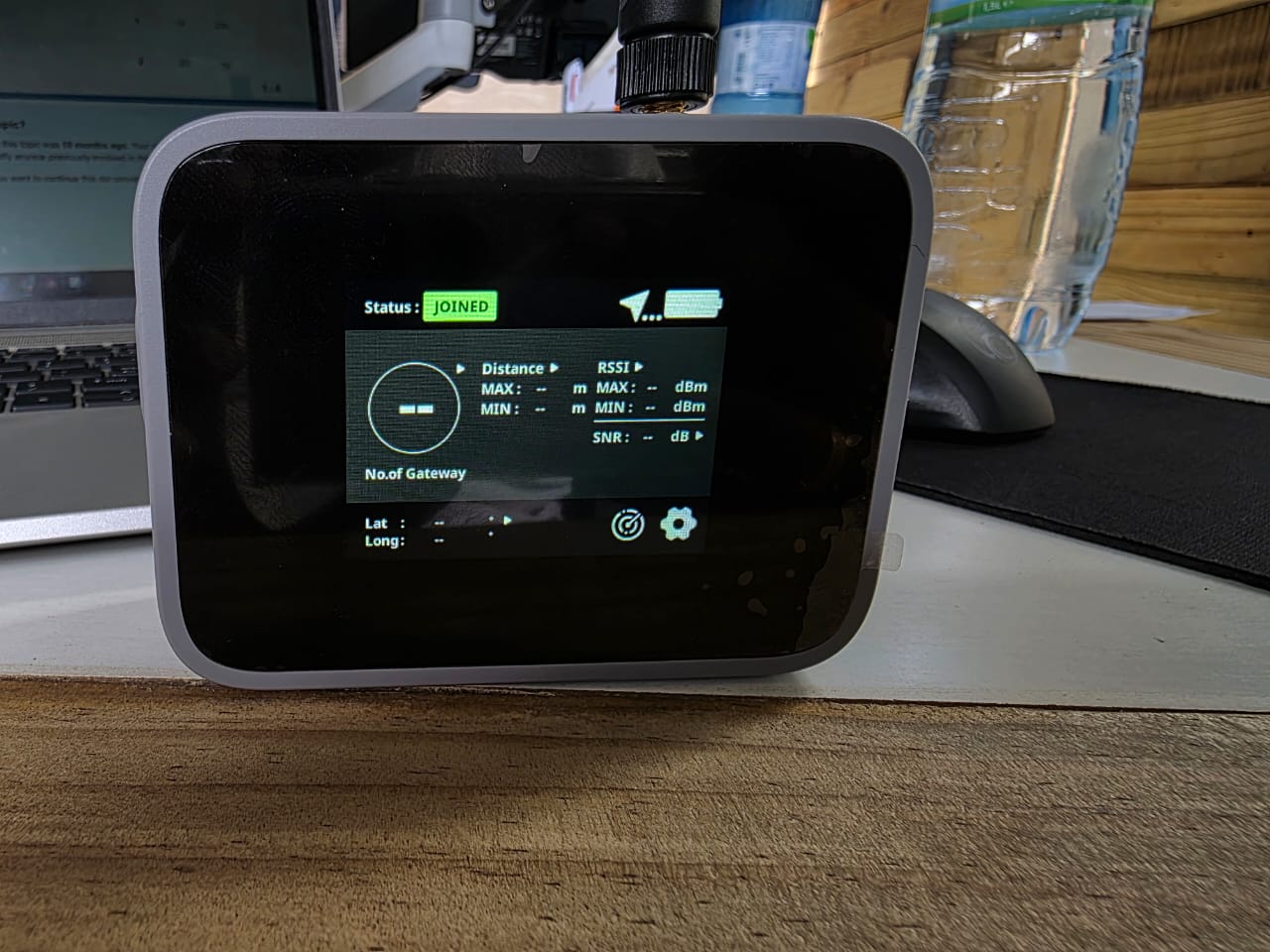

Field Tester:
Codec in Chirpstack:
// Decode decodes an array of bytes into an object.
// - fPort contains the LoRaWAN fPort number
// - bytes is an array of bytes, e.g. [225, 230, 255, 0]
// - variables contains the device variables e.g. {"calibration": "3.5"} (both the key / value are of type string)
// The function must return an object, e.g. {"temperature": 22.5}
function Decode(fPort, bytes, variables) {
var decoded = {};
// avoid sending Downlink ACK to integration (Cargo)
if (fPort === 1) {
var lonSign = (bytes[0] >> 7) & 0x01 ? -1 : 1;
var latSign = (bytes[0] >> 6) & 0x01 ? -1 : 1;
var encLat = ((bytes[0] & 0x3f) << 17) +
(bytes[1] << 9) +
(bytes[2] << 1) +
(bytes[3] >> 7);
var encLon = ((bytes[3] & 0x7f) << 16) +
(bytes[4] << 8) +
bytes[5];
var hdop = bytes[8] / 10;
var sats = bytes[9];
var maxHdop = 2;
var minSats = 5;
if ((hdop < maxHdop) && (sats >= minSats)) {
// Send only acceptable quality of position to mappers
decoded.latitude = latSign * (encLat * 108 + 53) / 10000000;
decoded.longitude = lonSign * (encLon * 215 + 107) / 10000000;
decoded.altitude = ((bytes[6] << 8) + bytes[7]) - 1000;
decoded.accuracy = (hdop * 5 + 5) / 10
decoded.hdop = hdop;
decoded.sats = sats;
} else {
decoded.error = "Need more GPS precision (hdop must be <" + maxHdop +
" & sats must be >= " + minSats + ") current hdop: " + hdop + " & sats:" + sats;
decoded.latitude = latSign * (encLat * 108 + 53) / 10000000;
decoded.longitude = lonSign * (encLon * 215 + 107) / 10000000;
decoded.altitude = ((bytes[6] << 8) + bytes[7]) - 1000;
decoded.accuracy = (hdop * 5 + 5) / 10
decoded.hdop = hdop;
decoded.sats = sats;
}
return decoded;
}
return null;
}
// Chirpstack v3 to v4 compatibility wrapper
function decodeUplink(input) {
return {
data: Decode(input.fPort, input.bytes, input.variables)
};
}
Sample uplink:
{
"deduplicationId": "89d1ee68-9353-4e94-b2fe-f5a9a21abbf9",
"time": "2025-02-12T10:01:33.445+00:00",
"deviceInfo": {
"tenantId": "ea6ab5f4-ad75-40c5-9a56-093ab4089ffc",
"tenantName": "Demo",
"applicationId": "ee4a686c-7191-478a-a6ce-afc675d9c22e",
"applicationName": "Field Tester",
"deviceProfileId": "3c243fe9-cffd-4275-9c20-f1f64313f8d8",
"deviceProfileName": "RakWireless Field Tester",
"deviceName": "Field Tester",
"devEui": "ac1f09fffe0fd0ba",
"deviceClassEnabled": "CLASS_A",
"tags": {}
},
"devAddr": "0150ddbe",
"adr": true,
"dr": 5,
"fCnt": 53,
"fPort": 1,
"confirmed": true,
"data": "TlONKNE3BZsHDQ==",
"object": {
"longitude": 57.5124892,
"accuracy": 0.85,
"altitude": 435,
"latitude": -20.2800941,
"sats": 13,
"hdop": 0.7
},
"rxInfo": [
{
"gatewayId": "24e124fffef9e711",
"uplinkId": 11034,
"gwTime": "2025-02-12T10:01:33.445062+00:00",
"nsTime": "2025-02-12T10:01:33.566017330+00:00",
"timeSinceGpsEpoch": "1423389711.445s",
"rssi": -97,
"snr": 12.5,
"channel": 7,
"location": {
"latitude": -20.28009,
"longitude": 57.51255,
"altitude": 432
},
"context": "fBIWPQ==",
"metadata": {
"region_config_id": "eu868",
"region_common_name": "EU868"
},
"crcStatus": "CRC_OK"
}
],
"txInfo": {
"frequency": 867900000,
"modulation": {
"lora": {
"bandwidth": 125000,
"spreadingFactor": 7,
"codeRate": "CR_4_5"
}
}
}
}

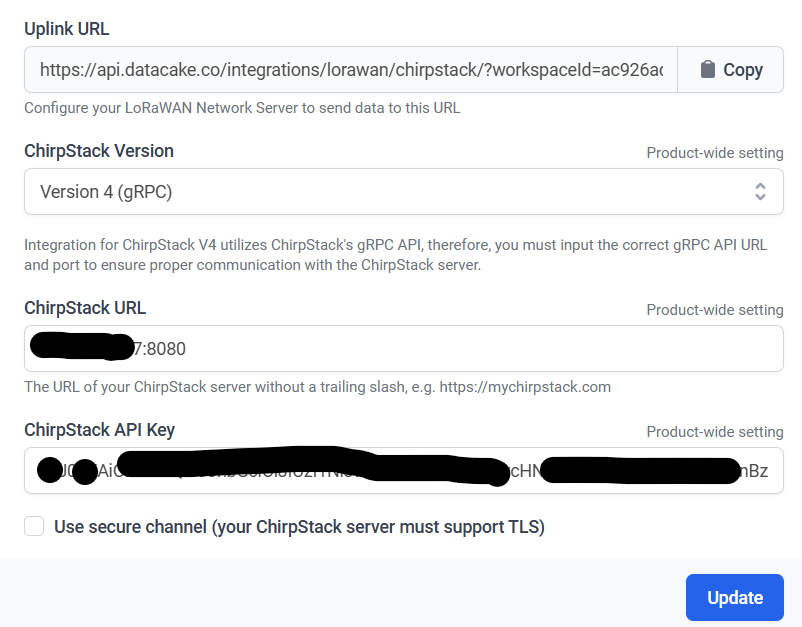

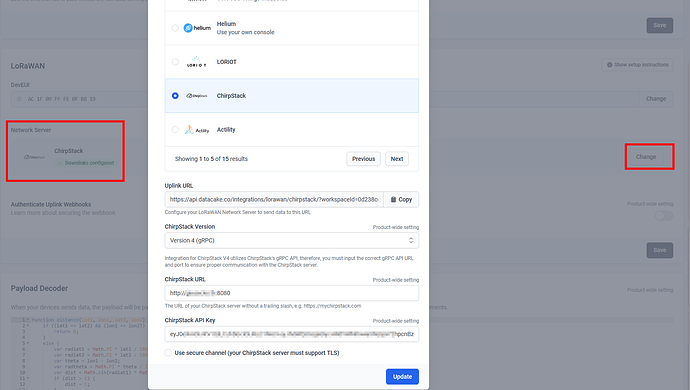

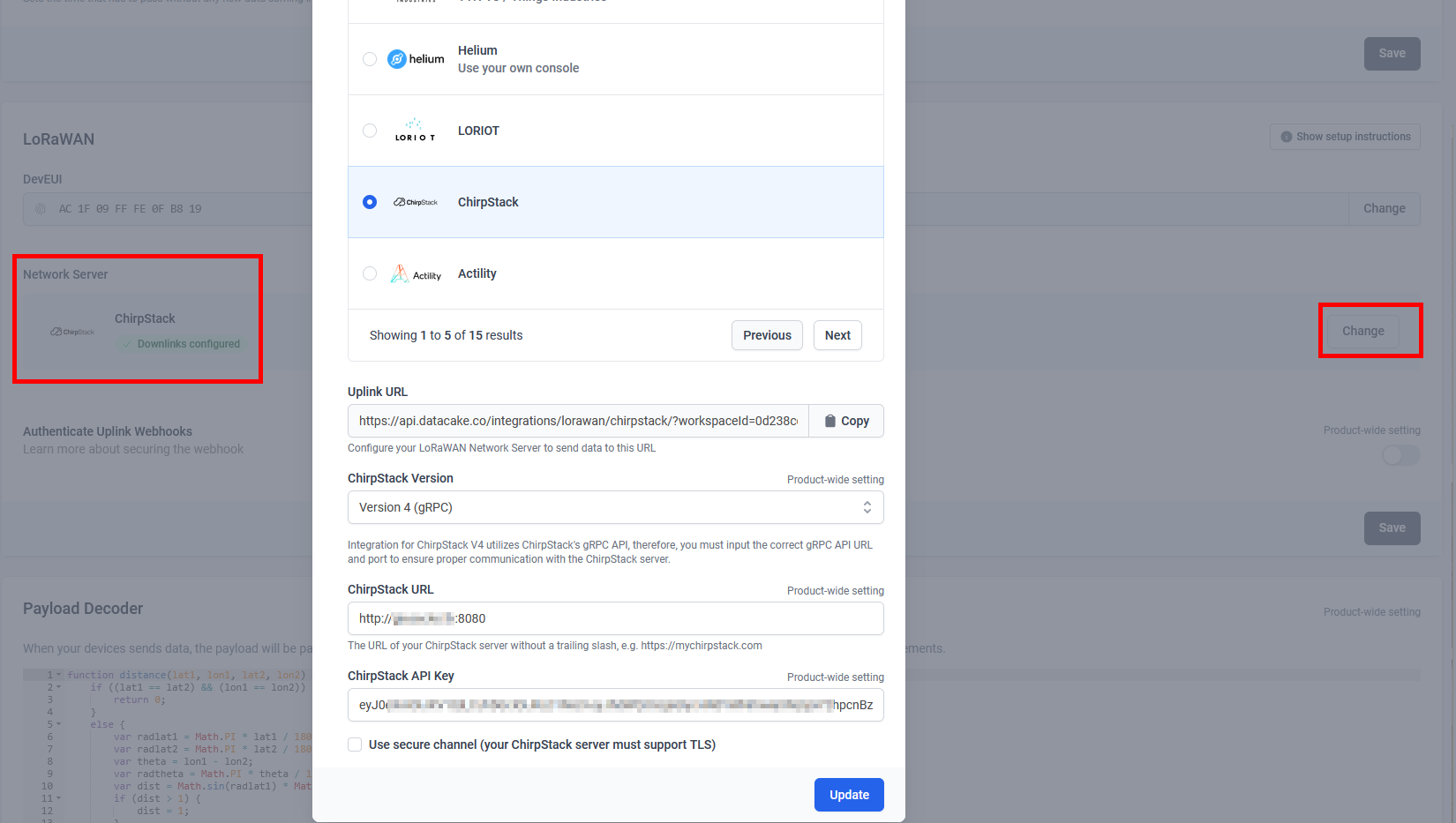

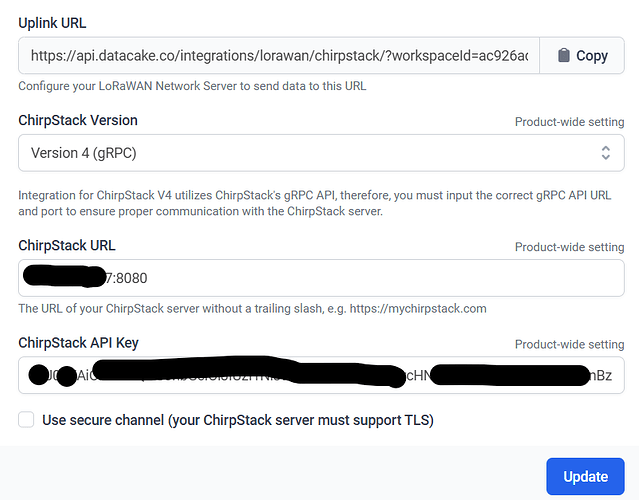

Payload Decoder in DataCake:
function distance(lat1, lon1, lat2, lon2) {
if ((lat1 == lat2) && (lon1 == lon2)) {
return 0;
}
else {
var radlat1 = Math.PI * lat1 / 180;
var radlat2 = Math.PI * lat2 / 180;
var theta = lon1 - lon2;
var radtheta = Math.PI * theta / 180;
var dist = Math.sin(radlat1) * Math.sin(radlat2) + Math.cos(radlat1) * Math.cos(radlat2) * Math.cos(radtheta);
if (dist > 1) {
dist = 1;
}
dist = Math.acos(dist);
dist = dist * 180 / Math.PI;
dist = dist * 60 * 1.1515;
dist = dist * 1.609344;
return dist;
}
}
function Decoder(bytes, fPort) {
var decoded = {};
// avoid sending Downlink ACK to integration (Cargo)
if (fPort === 1) {
var lonSign = (bytes[0] >> 7) & 0x01 ? -1 : 1;
var latSign = (bytes[0] >> 6) & 0x01 ? -1 : 1;
var encLat = ((bytes[0] & 0x3f) << 17) +
(bytes[1] << 9) +
(bytes[2] << 1) +
(bytes[3] >> 7);
var encLon = ((bytes[3] & 0x7f) << 16) +
(bytes[4] << 8) +
bytes[5];
var hdop = bytes[8] / 10;
var sats = bytes[9];
var maxHdop = 2;
var minSats = 5;
if ((hdop < maxHdop) && (sats >= minSats)) {
// Send only acceptable quality of position to mappers
decoded.latitude = latSign * (encLat * 108 + 53) / 10000000;
decoded.longitude = lonSign * (encLon * 215 + 107) / 10000000;
decoded.altitude = ((bytes[6] << 8) + bytes[7]) - 1000;
decoded.accuracy = (hdop * 5 + 5) / 10
decoded.hdop = hdop;
decoded.sats = sats;
decoded.location = "(" + decoded.latitude + "," + decoded.longitude + ")";
} else {
decoded.error = "Need more GPS precision (hdop must be <" + maxHdop +
" & sats must be >= " + minSats + ") current hdop: " + hdop + " & sats:" + sats;
decoded.latitude = latSign * (encLat * 108 + 53) / 10000000;
decoded.longitude = lonSign * (encLon * 215 + 107) / 10000000;
decoded.altitude = ((bytes[6] << 8) + bytes[7]) - 1000;
decoded.accuracy = (hdop * 5 + 5) / 10
decoded.hdop = hdop;
decoded.sats = sats;
decoded.location = "(" + decoded.latitude + "," + decoded.longitude + ")";
}
// decoded.raw = rawPayload.uplink_message.rx_metadata[0].location;
decoded.num_gw = normalizedPayload.gateways.length;
decoded.minRSSI = 0;
decoded.maxRSSI = 0;
decoded.minSNR = 0;
decoded.maxSNR = 0;
decoded.minDistance = 0;
decoded.maxDistance = 0;
var server_type = 0;
// Check if payload comes from TTN
if (typeof (rawPayload.uplink_message) != "undefined") {
console.log("Found TTN format");
server_type = 1;
}
// Check if payload comes from Helium
else if (typeof (rawPayload.hotspots) != "undefined") {
console.log("Found Helium format");
server_type = 2;
}
// Check if payload comes from Chirpstack
else if (typeof (rawPayload.rxInfo) != "undefined") {
console.log("Found Chirpstack format");
server_type = 3;
decoded.is_chirpstack = 1;
}
else {
console.log("Unknown raw format");
}
var gw_lat = {};
var gw_long = {};
decoded.num_gw = 0;
for (idx_tst = 0; idx_tst < 10; idx_tst++)
{
if (typeof (normalizedPayload.gateways[idx_tst]) != "undefined")
{
console.log("Found gateway with IDX " + idx_tst);
decoded.num_gw += 1;
}
}
for (idx = 0; idx < decoded.num_gw; idx++) {
var new_rssi = (!!normalizedPayload.gateways && !!normalizedPayload.gateways[idx] && normalizedPayload.gateways[idx].rssi) || 0;
var new_snr = (!!normalizedPayload.gateways && !!normalizedPayload.gateways[idx] && normalizedPayload.gateways[idx].snr) || 0;
if ((new_rssi < decoded.minRSSI) || (decoded.minRSSI == 0)) {
decoded.minRSSI = new_rssi;
}
if ((new_rssi > decoded.maxRSSI) || (decoded.maxRSSI == 0)) {
decoded.maxRSSI = new_rssi;
}
if ((new_snr < decoded.minSNR) || (decoded.minSNR == 0)) {
decoded.minSNR = new_snr;
}
if ((new_snr > decoded.maxSNR) || (decoded.maxSNR == 0)) {
decoded.maxSNR = new_snr;
}
// var gw_lat = 0.0;
// var gw_long = 0.0;
switch (server_type) {
//TTN
case 1:
gw_lat[idx] = rawPayload.uplink_message.rx_metadata[idx].location.latitude;
gw_long[idx] = rawPayload.uplink_message.rx_metadata[idx].location.longitude;
break;
// Helium
case 2:
gw_lat[idx] = rawPayload.hotspots[idx].lat;
gw_long[idx] = rawPayload.hotspots[idx].long;
break;
// Chirpstack
case 3:
gw_lat[idx] = rawPayload.rxInfo[idx].location.latitude;
gw_long[idx] = rawPayload.rxInfo[idx].location.longitude;
break;
default:
console.log("Unknown LNS");
break;
}
console.log("IDX " + idx + " lat " + gw_lat[idx] + " long " + gw_long[idx]);
// decoded.gw_lat[idx] = gw_lat;
// decoded.gw_long[idx] = gw_long;
// Calculate distance
var new_distance = distance(gw_lat[idx], gw_long[idx], decoded.latitude, decoded.longitude);
if ((new_distance < decoded.minDistance) || (decoded.minDistance == 0)) {
decoded.minDistance = new_distance * 1000;
}
if ((new_distance > decoded.maxDistance) || (decoded.maxDistance == 0)) {
decoded.maxDistance = new_distance * 1000;
}
}
switch (decoded.num_gw) {
case 20:
decoded.hotspot_10 = "(" + gw_lat[19] + "," + gw_long[19] + ")";
case 19:
decoded.hotspot_09 = "(" + gw_lat[18] + "," + gw_long[18] + ")";
case 18:
decoded.hotspot_08 = "(" + gw_lat[17] + "," + gw_long[17] + ")";
case 17:
decoded.hotspot_07 = "(" + gw_lat[16] + "," + gw_long[16] + ")";
case 16:
decoded.hotspot_06 = "(" + gw_lat[15] + "," + gw_long[15] + ")";
case 15:
decoded.hotspot_05 = "(" + gw_lat[14] + "," + gw_long[14] + ")";
case 14:
decoded.hotspot_04 = "(" + gw_lat[13] + "," + gw_long[13] + ")";
case 13:
decoded.hotspot_03 = "(" + gw_lat[12] + "," + gw_long[12] + ")";
case 12:
decoded.hotspot_02 = "(" + gw_lat[11] + "," + gw_long[11] + ")";
case 11:
decoded.hotspot_01 = "(" + gw_lat[10] + "," + gw_long[10] + ")";
case 10:
decoded.hotspot_10 = "(" + gw_lat[9] + "," + gw_long[9] + ")";
case 9:
decoded.hotspot_09 = "(" + gw_lat[8] + "," + gw_long[8] + ")";
case 8:
decoded.hotspot_08 = "(" + gw_lat[7] + "," + gw_long[7] + ")";
case 7:
decoded.hotspot_07 = "(" + gw_lat[6] + "," + gw_long[6] + ")";
case 6:
decoded.hotspot_06 = "(" + gw_lat[5] + "," + gw_long[5] + ")";
case 5:
decoded.hotspot_05 = "(" + gw_lat[4] + "," + gw_long[4] + ")";
case 4:
decoded.hotspot_04 = "(" + gw_lat[3] + "," + gw_long[3] + ")";
case 3:
decoded.hotspot_03 = "(" + gw_lat[2] + "," + gw_long[2] + ")";
case 2:
decoded.hotspot_02 = "(" + gw_lat[1] + "," + gw_long[1] + ")";
case 1:
decoded.hotspot_01 = "(" + gw_lat[0] + "," + gw_long[0] + ")";
default:
break;
}
decoded.maxMod = parseInt((decoded.maxDistance / 250), 10);
decoded.minMod = parseInt((decoded.minDistance / 250), 10);
decoded.maxDistance = parseInt((decoded.maxMod * 250), 10);
decoded.minDistance = parseInt((decoded.minMod * 250), 10);
if (decoded.maxDistance <= 1) {
decoded.maxDistance = parseInt(250, 10);
}
if (decoded.minDistance <= 1) {
decoded.minDistance = parseInt(250, 10);
}
return decoded;
}
return null;
}

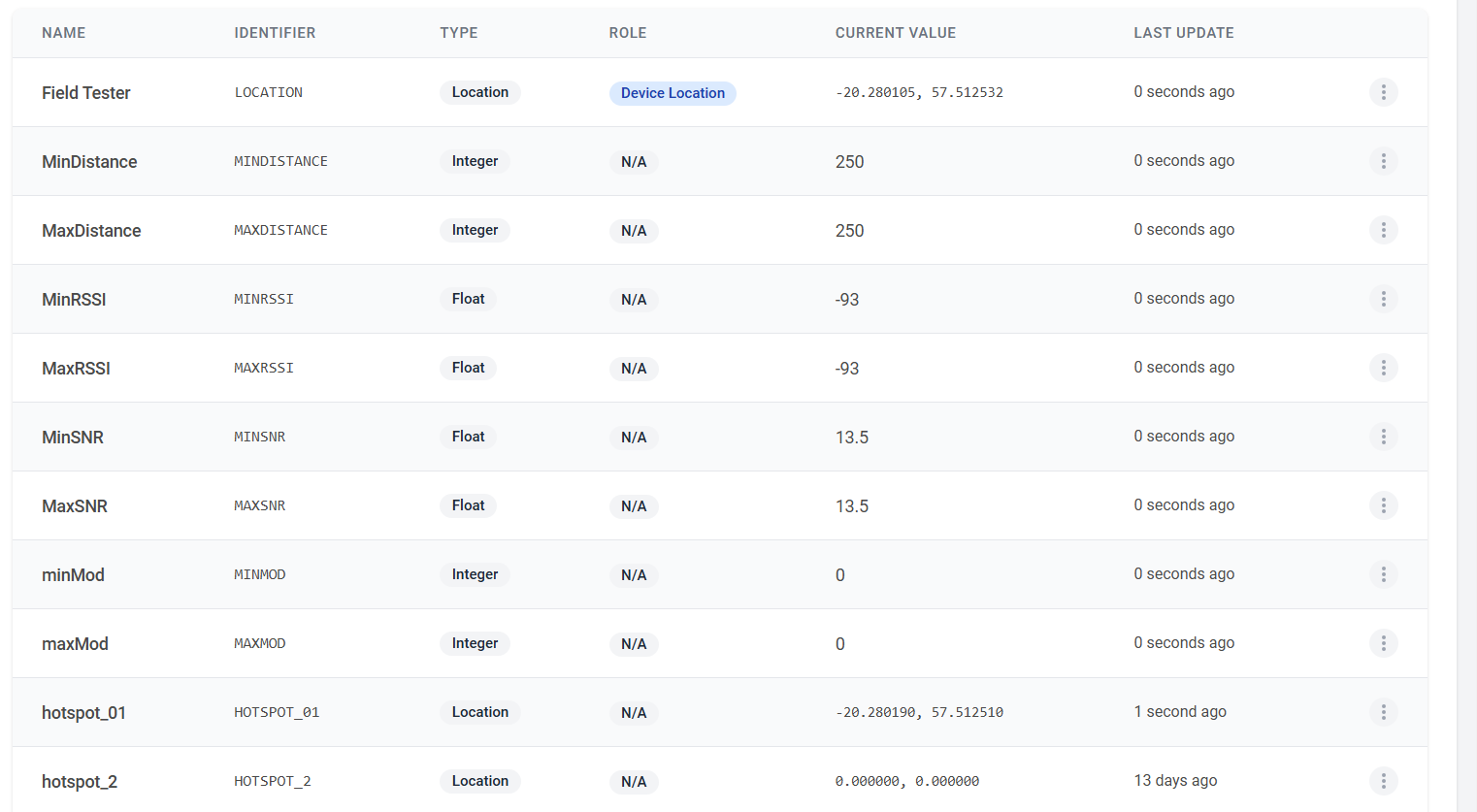

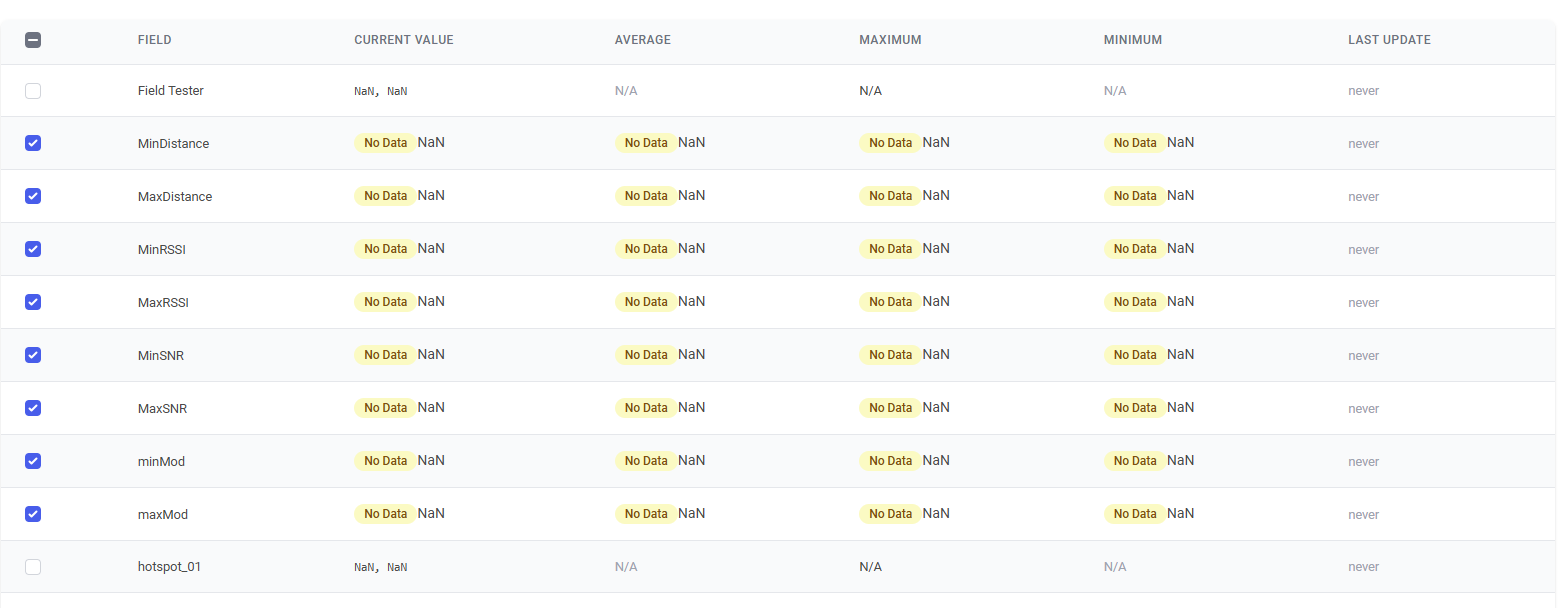

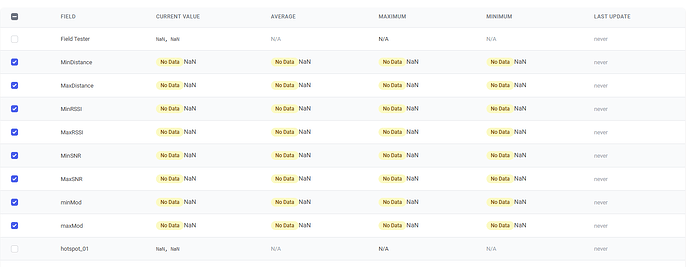

DataCake Fields:
Downlink Encoder in Datacake downlink:
function Encoder(measurements, port) {
var buf = [];
buf[0] = 1;
buf[1] = measurements.MINRSSI.value + 200;
buf[2] = measurements.MAXRSSI.value + 200;
// var temp = parseInt(measurements.MINMOD.value,10);
if (measurements.MINMOD.value == 0) {
measurements.MINMOD.value = 1;
}
console.log(measurements.MINMOD.value);
buf[3] = measurements.MINMOD.value;
if (measurements.MAXMOD.value == 0) {
measurements.MAXMOD.value = 1;
}
buf[4] = measurements.MAXMOD.value;
buf[5] = measurements.NUM_GW.value;
return buf;
}

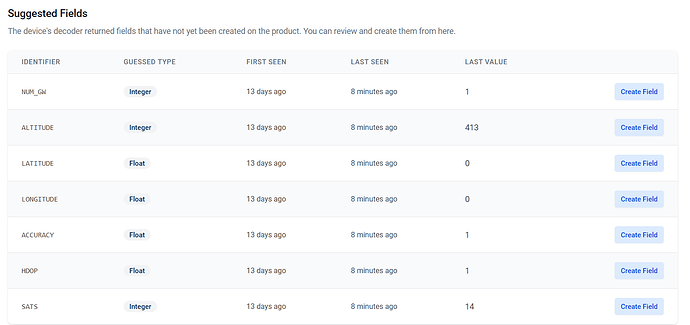

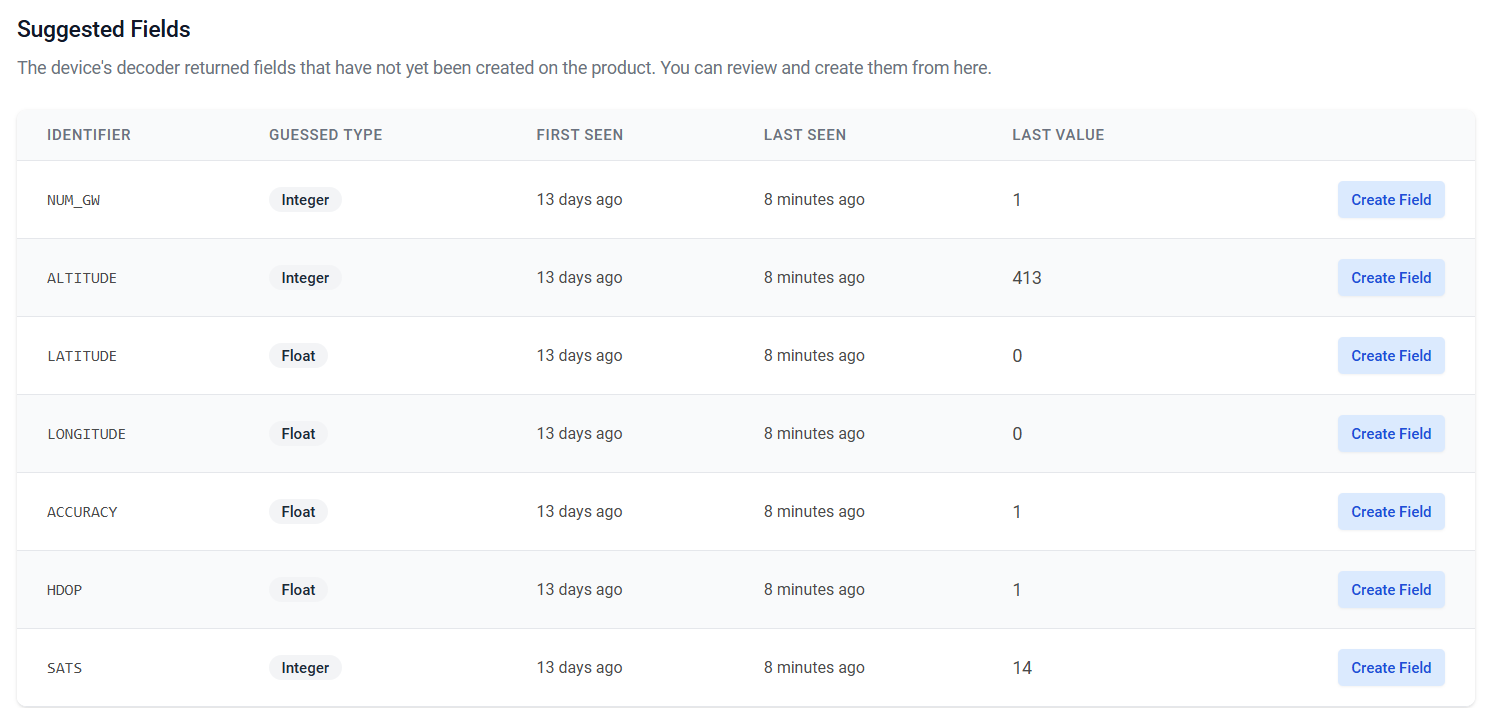

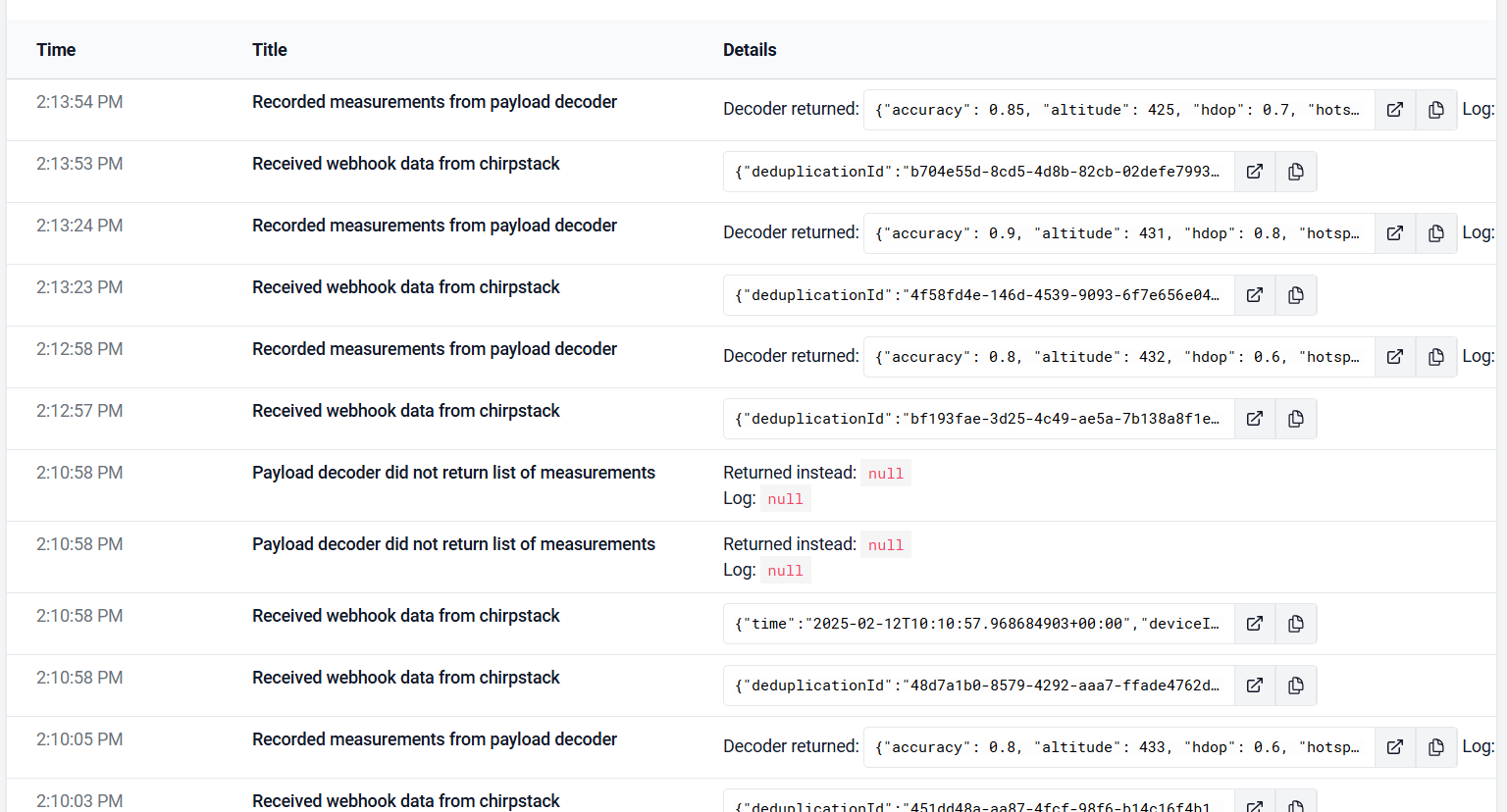

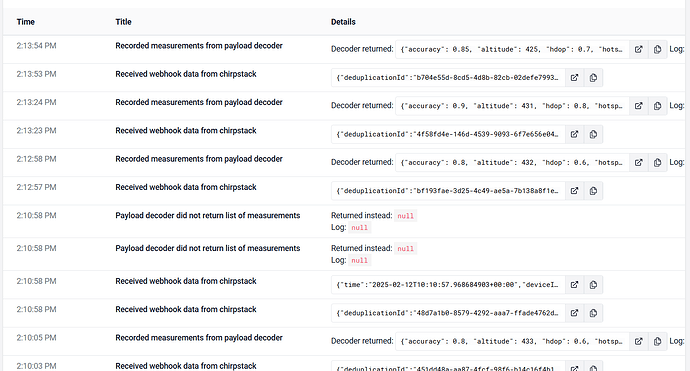

Debug Log in DataCake:

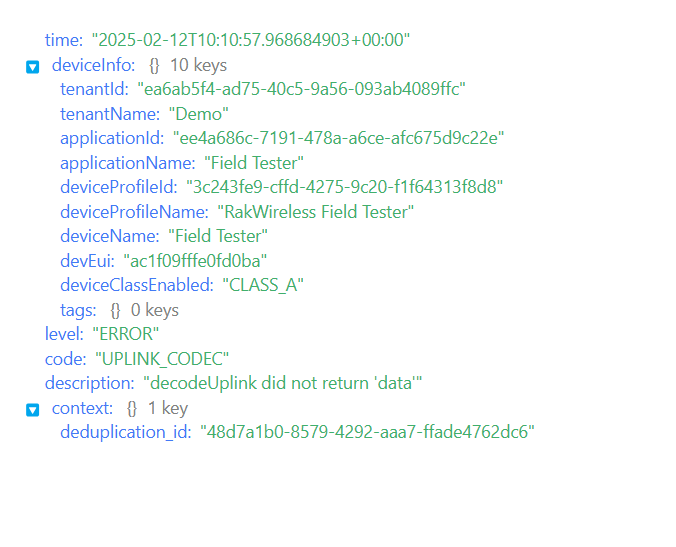

Sometimes, I receive this error in chirpstack:

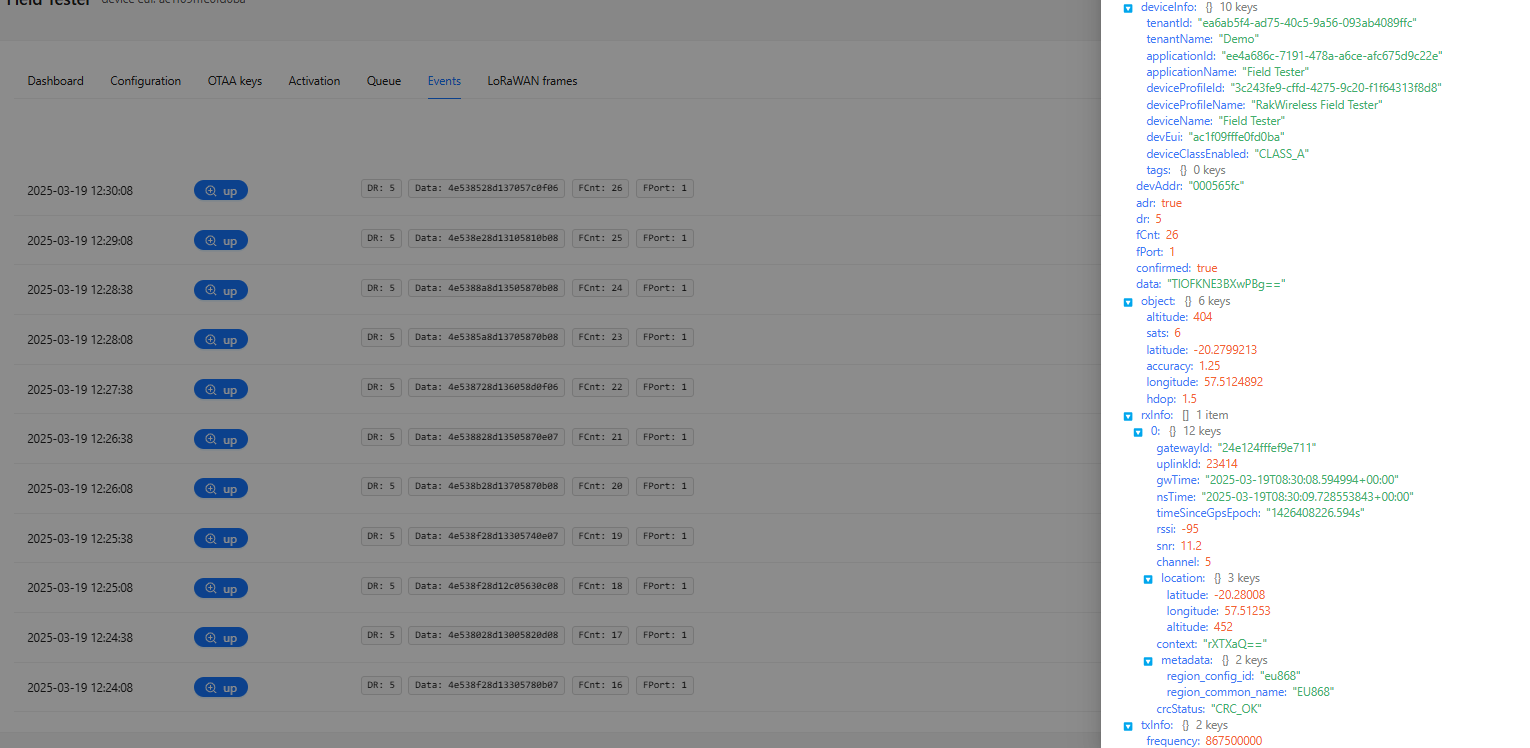

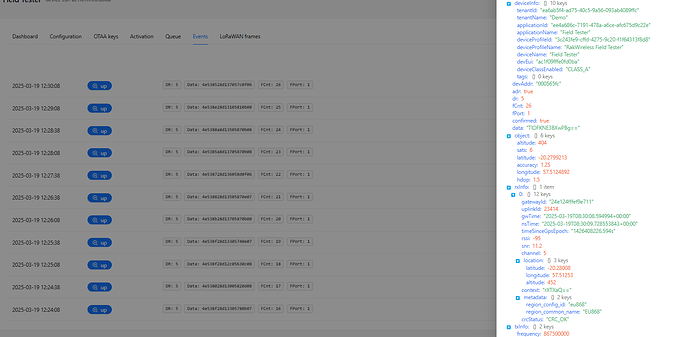

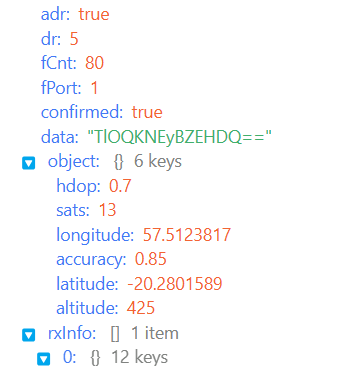

The only data I can see on Chirpstack are:
Kindly advise if I am doing something wrong.
