The difference between low frequency (433/470 MHZ) and high frequency (860/915MHz) variants are not only the PB12 pin. There is a difference in the RF path matching circuit between the two variants.
So it is not only the frequency the firmware is setting. It has to match with the RF path matching circuit or you will get bad RF performance.
Bernd, apart from the change in the matching network between the different bands, are you also switching between using RFO_HP and RFO_LP pins on the chip itself?
Or do you just use the RFO_HP for all variants?
No, the RAK3172 is always using RFO_HP.
And to answer another question (from Frank), there was no change in the PCB layout since official launch of the RAK3172.
Hi Bernd (and other’s interested) … Just wondering where this left off. Now, a few months later, I have a design that I’m about to manufacture.
In my design I wish to accommodate both the connectorized and unconnectorized module variants so I have an engineered 50 Ω trace from pin 12 to a pi network and it includes a small 0402 0 Ω removable connection very close to pin 12. The 0 Ω resistor can be removed when using the u.fl connector model.
So in summary, in my case I have an engineered 50 Ω trace from pin 12 that can be disconnected when the user chooses to use the module with the u.fl connector. I have no special removal of copper layers…
So I seek any insights that might lead me to change the design. Specifically: In the end of this discussion was it determined that no special removal of copper layers is required and, have I missed something …
Hi Peter,

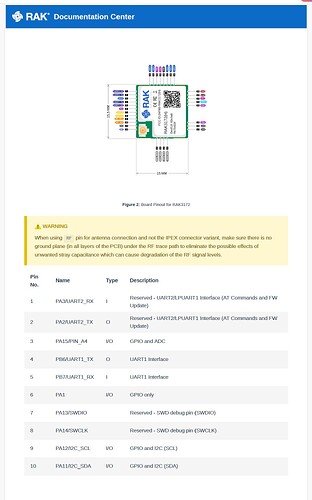

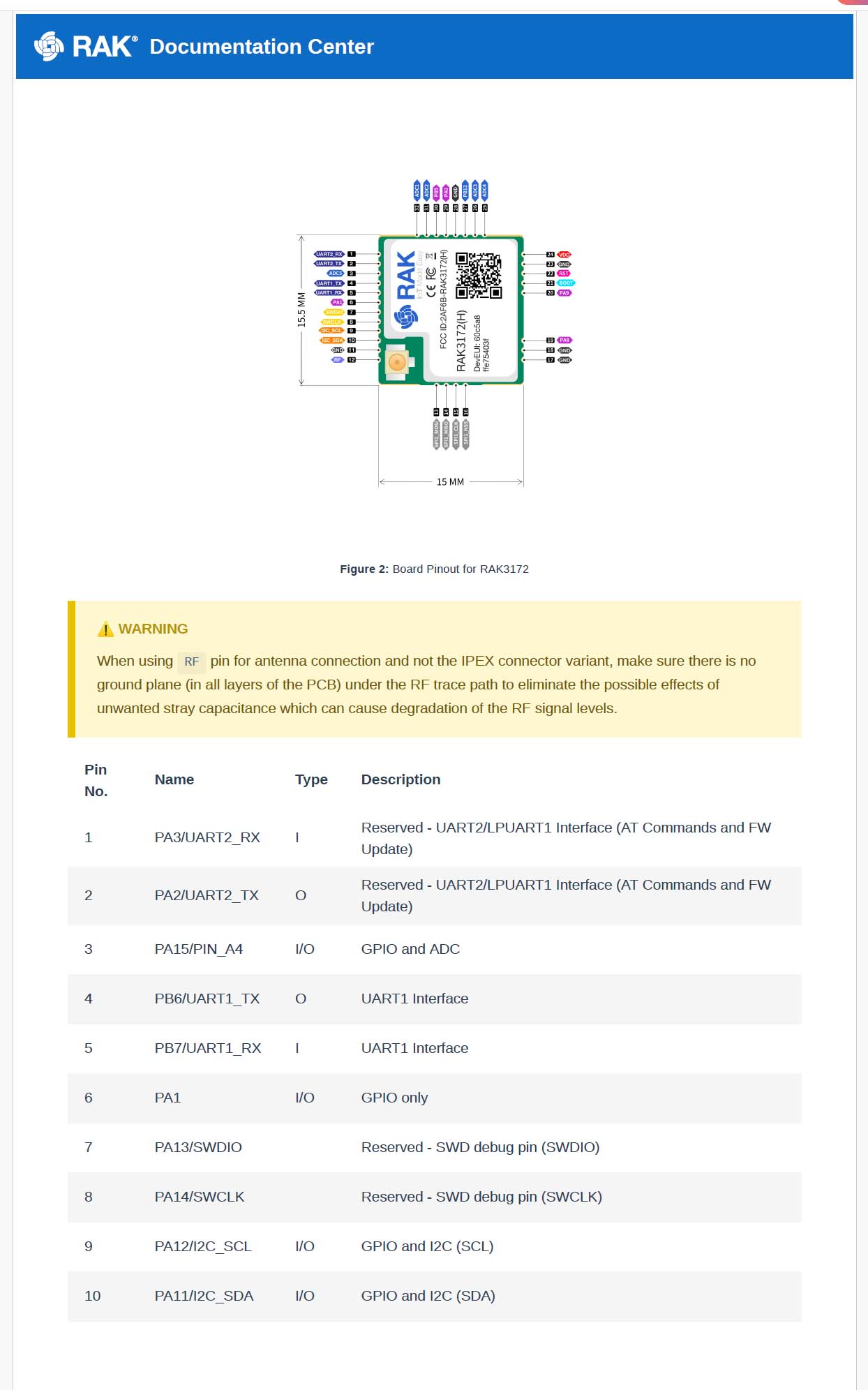

There is document about the RAK3172 that clearly states that copper on all layers under pin 12 should be removed.
Thanks for this. I’ll take your advice and make the change on my board. Experience speaks here! I’d really like to see the Gerber files but I won’t ask for proprietary stuff.
Interestingly RAK has changed the yellow warning box and removed the specific warning and replaced it (see here).
Hi Peter,
This issue caused me a lot of problems. My RF output was down over 40dB. A temp. fix was to remove the module and resolder it with no connection from pin 12 to the PCB. and making sure pin 12 did not touch the PCB. This fixed the problem. My next version of the PCB removed pin 12 altogether and cleared the copper as indicated under the module. There is an issue with the RF output on this module. Its extremely sensitive to output matching and termination from pin 12… A more robust RF output would be desirable.
It’s very strange that the RF output could be affected to this extent (-40dB) with a GND plane under pin 12. It’s almost as if the U.FL RF connector was turned off on purpose if the module detects a load on pin 12. This sounds like a plausible explanation. What is the output structure of the module? Does the module looks for a load on pin 12? Perhaps the load detect circuit needs to be examined.
Please note that the warning was changed because the behavior cannot be generalized to all designs. We added new notes which can be considered in most designs but the ground plane removal is still case to case basis (proven that it does not always give bad effect on RF performance).
Carl,
The 40dB RF attenuation resulted in a range of less than 100m!!! RAKWireless needs to disclose the RF output structure. From the RF output behavior it seems that the RF signal exist either on the U.FL connector or Pin 12 but not both at the same time. The circuit that detects and does the switching is temperamental. Sometimes it works and sometimes it doesn’t. This is an issue that is not going away.
There is no “circuit that detects and does the switching”
It is RF signal from STM32WLE5 to 0 Ohm resistor which is either connected to the IPEX or the RF pad.
Hi Bernd,
My suggestion was a plausible explanation. I measured the resistance from pin 12 to the center pin of the U.Fl it’s a DC open circuit. Thus if I believe your explanation, if the module has U.FL connector then no signal will appear at pin 12? My situation where the RF signal was down by some 40dB at the U.FL is observed by other who have reported it on this Forum. How do you explain then where the signal on 5 modules was down by some 40 dB?
I am not a RF engineer.
If we have your custom PCB with the RAK3172 on it and the antenna you are using, our RF engineer can check.
Hi Bernd,
RAKWireless needs to disclose the RF output architecture. How are the U.FL connector and pin 12 related? And what is the relationship to PB12? A diagram would help in this regard. This needs to be included in the spec. sheet for the RAK3172. I know from from experience that if you are using the U.FL connector what hangs off of pin 12 effects the U.FL.in a BIG way.
There is not much to show.
RFI_P, RFI_N and RFO_HP are connected to the RF switch, which is controlled by PB8 and PC13.
The antenna switch RF pin goes to the IPEX connector and the resistor that connects the RF pad.
PB12 has nothing to do with the RF circuit at all. It is just connected to a pullup or pulldown resistor, indicating whether the module is for 4xx MHz or 8xx-9xx MHz range.
So far we have no plans to release the full schematics of the RAK3172.
Hi Bernd,
Was just interested in the architecture of the RF section. If I understand correctly on the IPEX version pin 12 the RF pad is connected?
Then why was I seeing a huge influence from pin 12? Where the TX power was down some 40dB?
I have received new PCB’s with the RAK3172 (IPEX version) where the PCB is made as my suggestions from October 24. The RF TX power level as expected. In this version. I have removed copped on all layers beneath the RF section and pin 12 has no solder pad.
Thus something is happening, but what exactly? With the IPEX version pin 12 internally must still have some connections. How else do you explain the strong effect of the RF output on the IPEX from pin 12. Thank You.
No, on the IPEX version the RF pad is NOT connected.
The resistor between the RF pad and the RF trace on the PCB is not assembled. The RF trace is only connected to the IPEX connector.
I have no explanation for the effects you see. The only way to find out is to give us your PCB design, so our RF engineer can run a simulation. But that is not free of charge.
Hi Bernd,
What ever the issue is, I have a solution that works quite effectively.
Thank you.
