Rak 3172 does not to join RAK3172 (RUI 4.2.0) Join Failed (RX_TIMEOUT) with RAK5146 Gateway on ChirpStack v4 US915_0

Amir · April 25, 2025, 4:50pm

Hi RAKwireless team and community,

I’m working on a sports vest project using 15x RAK3172 modules (LoRaWAN OTAA mode) with a RAK5146-based gateway running ChirpStack v4 locally (Docker on Raspberry Pi CM4). The gateway is configured to US915_0 sub-band.

However, I’m consistently getting join failures with +EVT:JOIN_FAILED_RX_TIMEOUT. I’ve tried multiple configurations. Below are the full details of my setup and current status:

RAK3172 Configuration:

Firmware version: RUI_4.2.0_RAK3172-T
Mode: LoRaWAN, OTAA, Class A
Region/Band: US915 sub-band 0
AT Commands:

AT+NWM=1
AT+NJM=1
AT+CLASS=A
AT+BAND=5
AT+MASK=0001
AT+CHE=1:2:3:4
AT+DEVEUI=DD4D23CD367B66A4
AT+APPEUI=9A314E467B84C6A3
AT+APPKEY=FB50868C07B8851EB21670DC986908EA
AT+ADR=0
AT+TXP=14
AT+JOIN

Result: Always +EVT:JOIN_FAILED_RX_TIMEOUT

ChirpStack Gateway & Device Profile:

Gateway: RAK5146 on Raspberry Pi CM4
Region: US915_0 (sub-band 0, channels 8–15)
Packet-forwarder is working (verified via journalctl)
ChirpStack Gateway Bridge running
Device Profile:
- MAC Version: LoRaWAN 1.0.3
- Regional Parameters Revision: RP001-1.0.3-RevA
- RX1 Delay: 1
- ADR: Enabled (also tried disabled)
- Frame-counter validation: Disabled
- Flush queue on activation: Yes

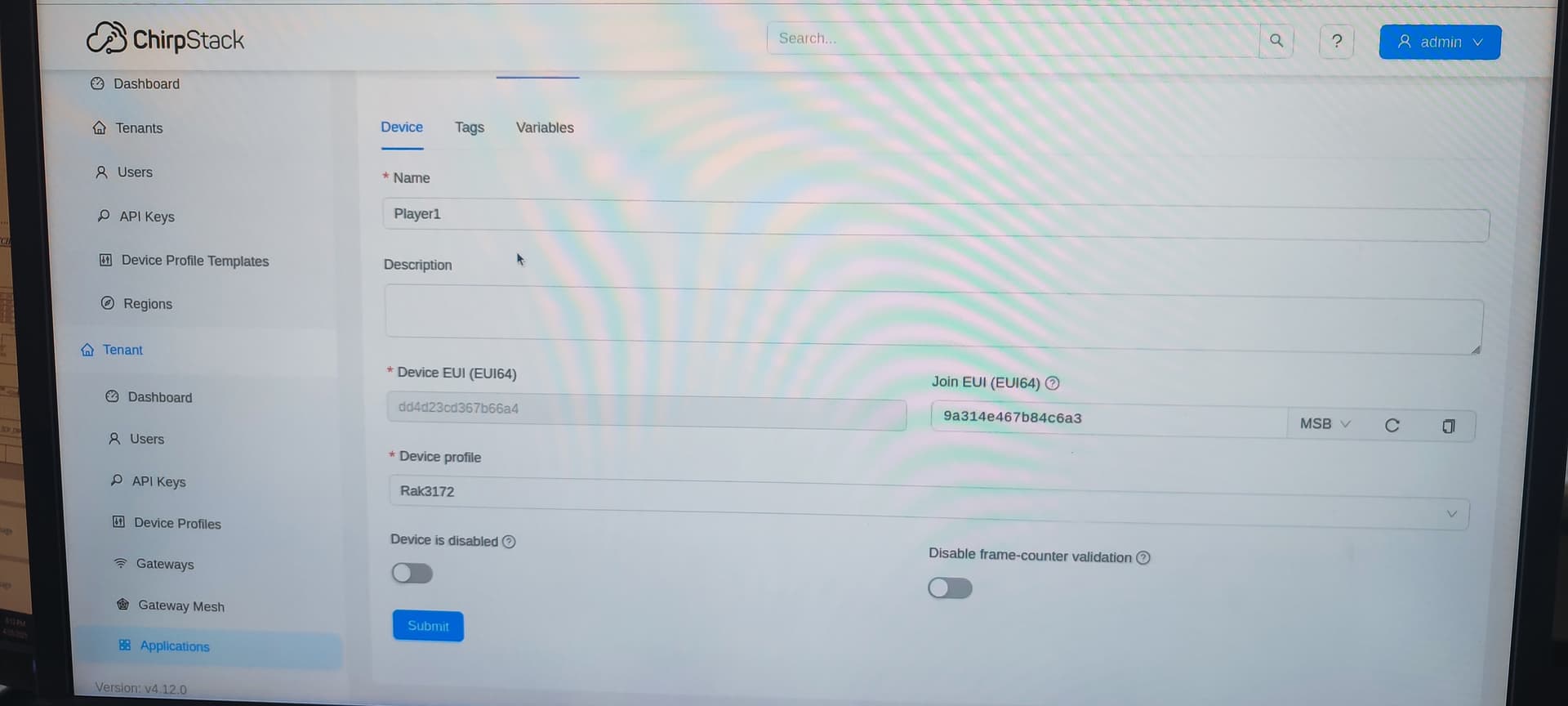

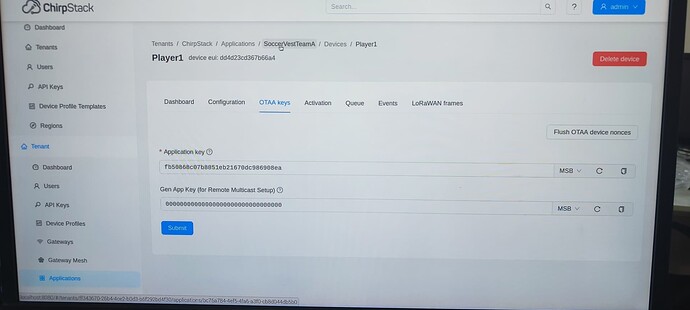

  IMG_20250425_2017321920×864 69.8 KB

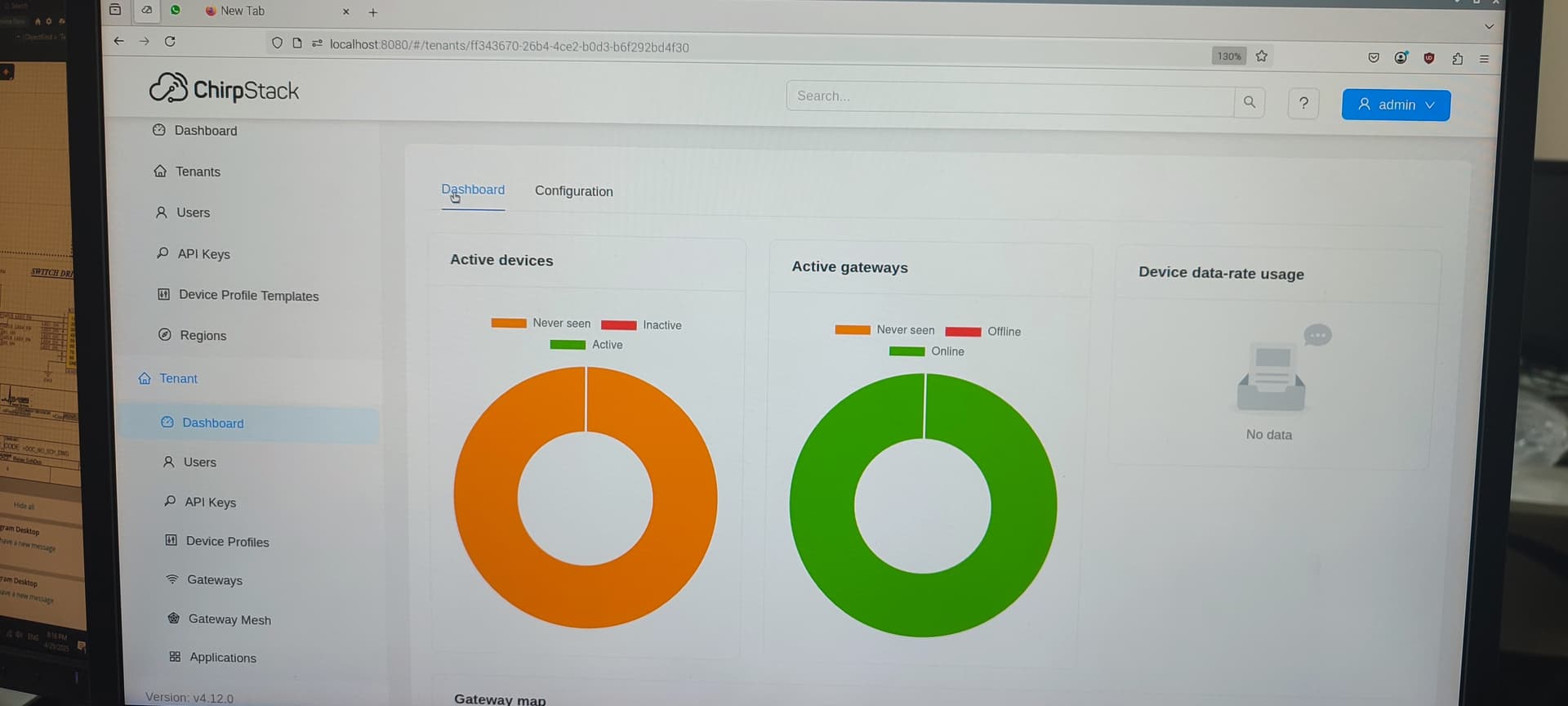

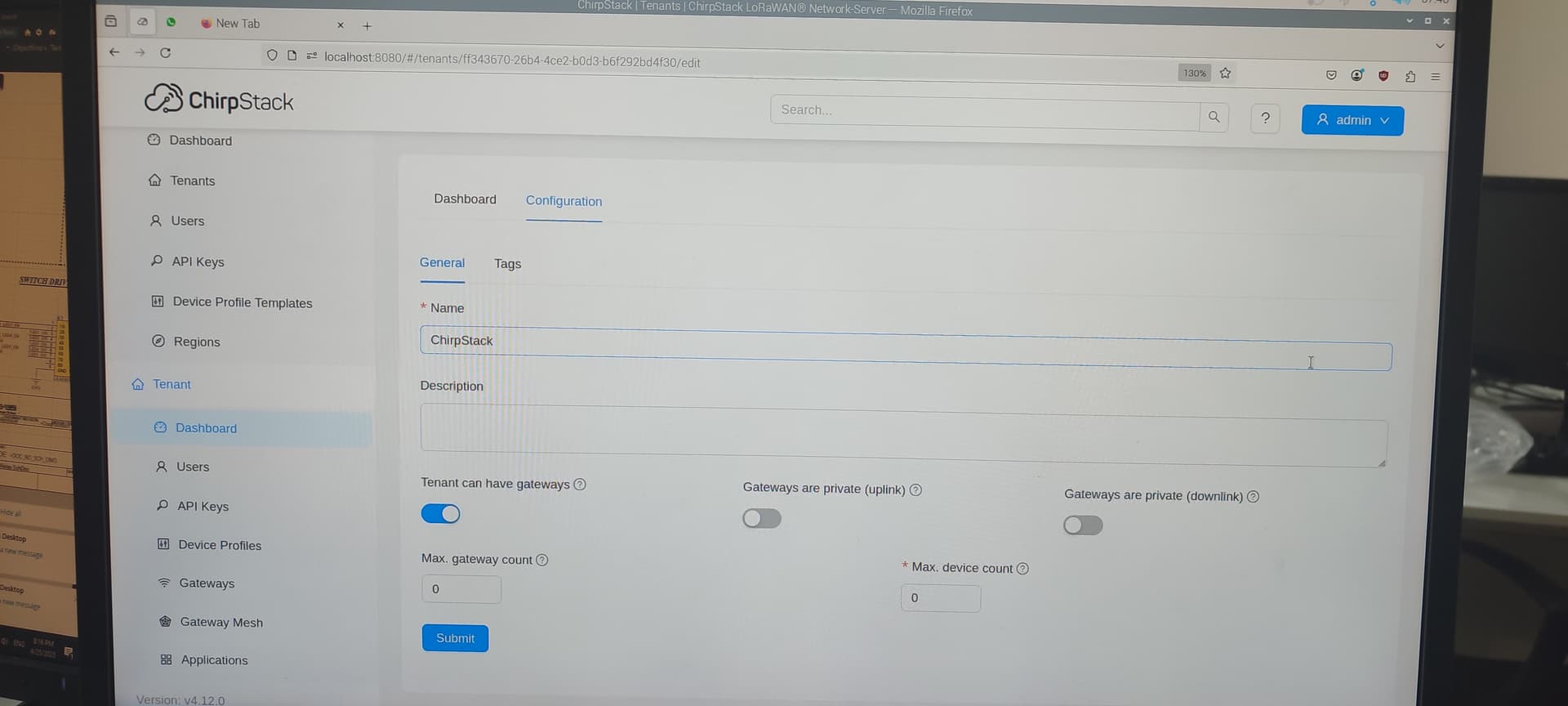

  IMG_20250425_2017471920×864 75.2 KB

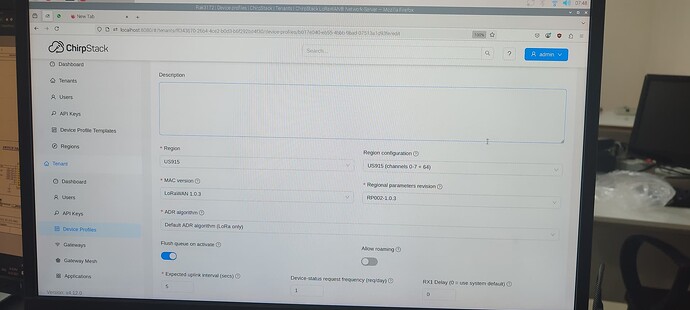

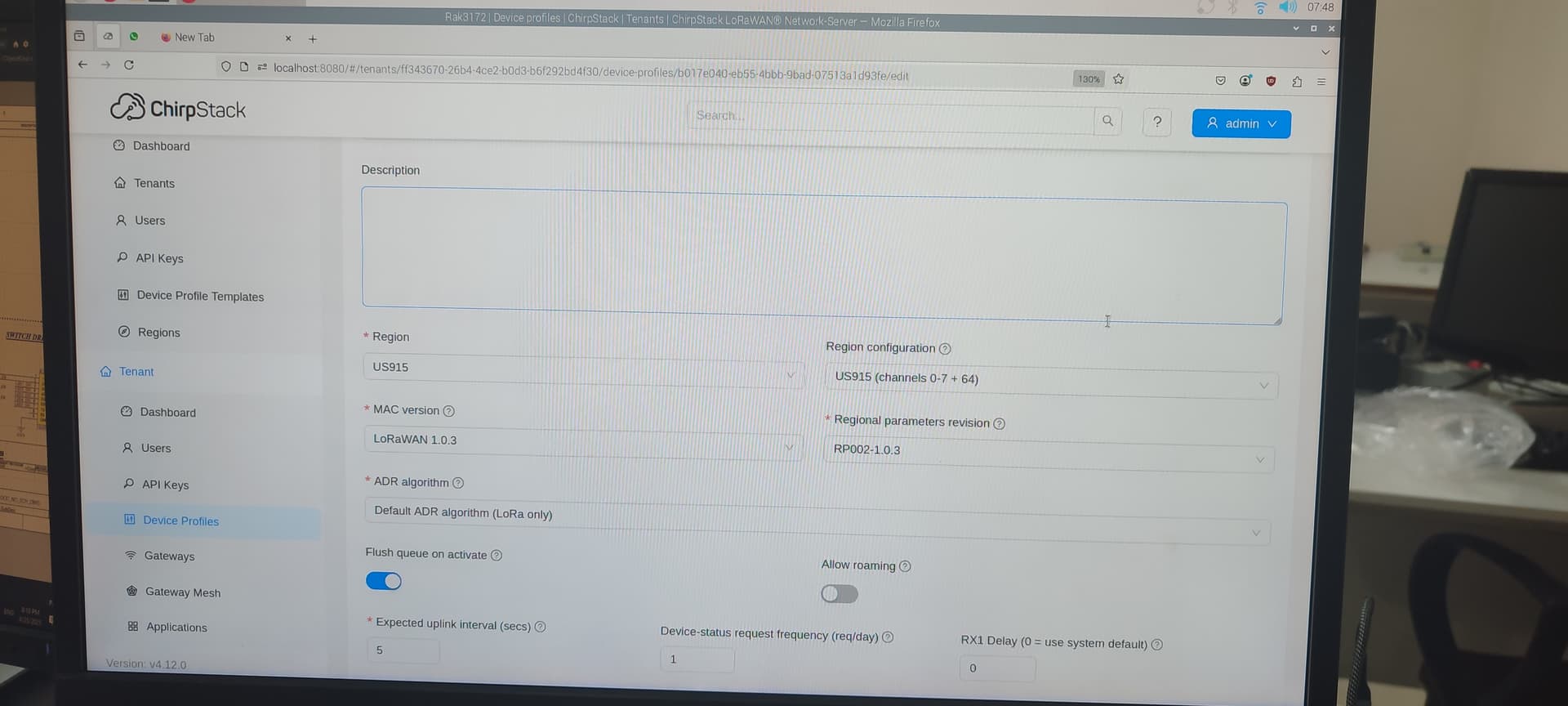

  IMG_20250425_2017581920×864 59.6 KB

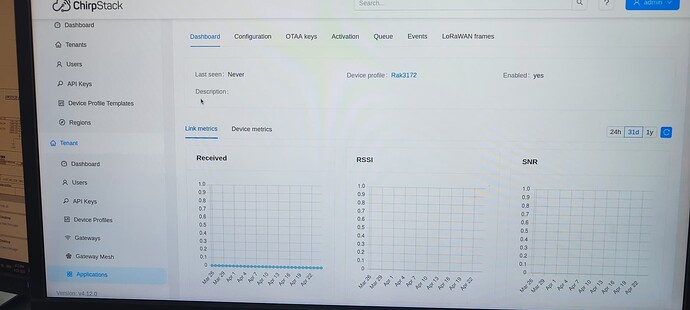

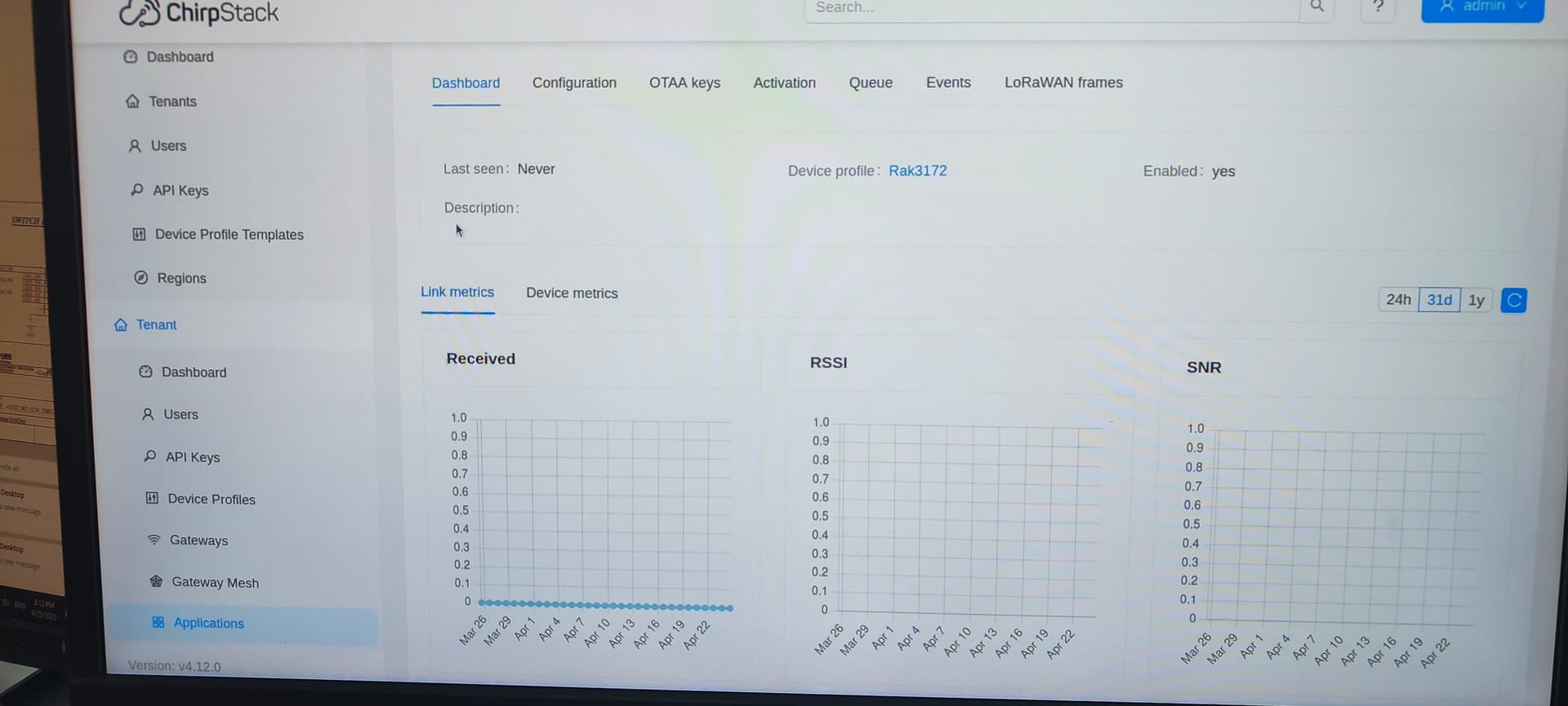

  IMG_20250425_2019591920×864 68.7 KB

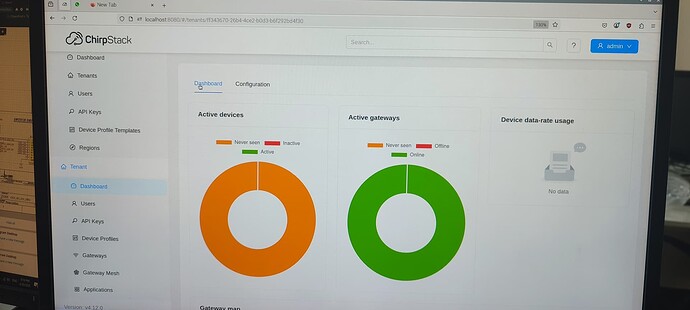

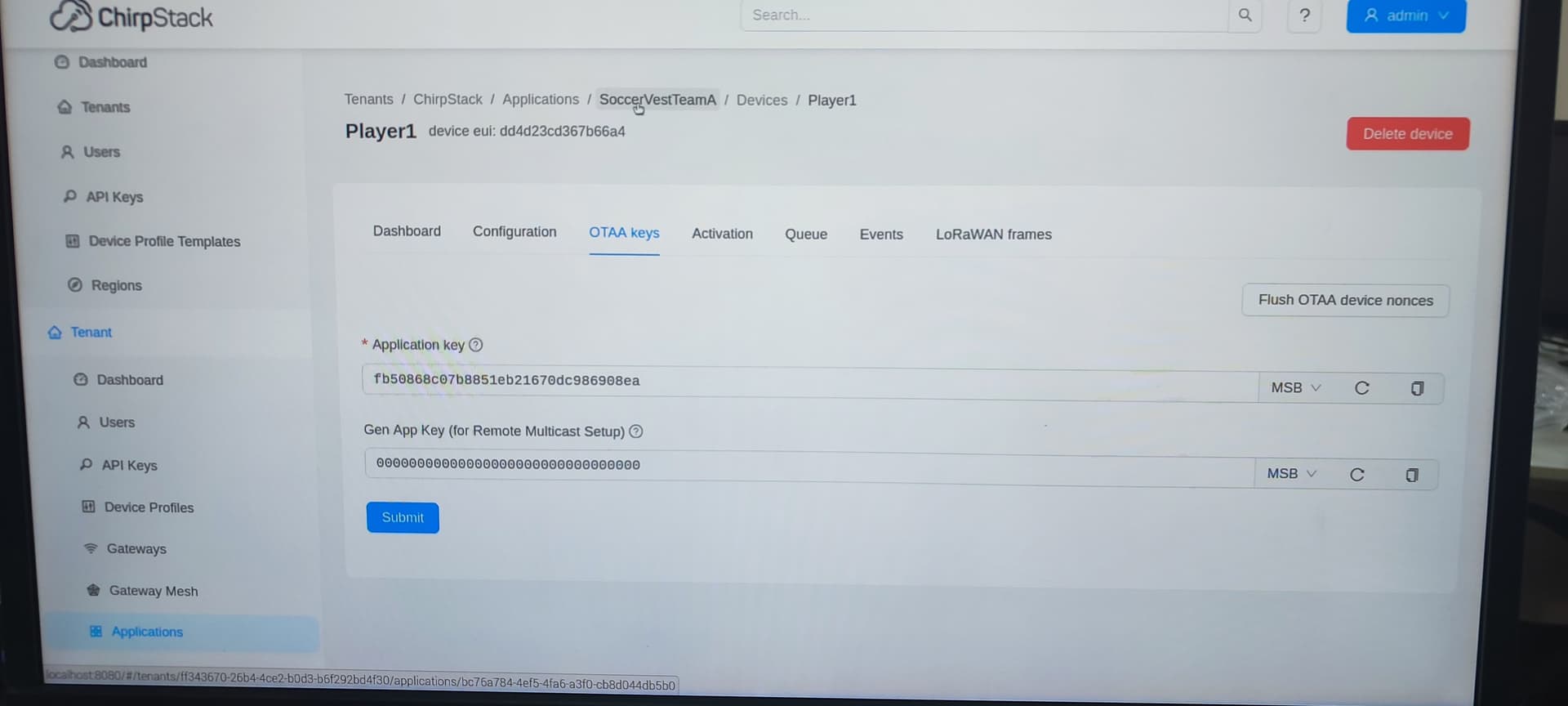

  IMG_20250425_2020061920×864 70.9 KB

  IMG_20250425_2022501920×864 96.8 KB

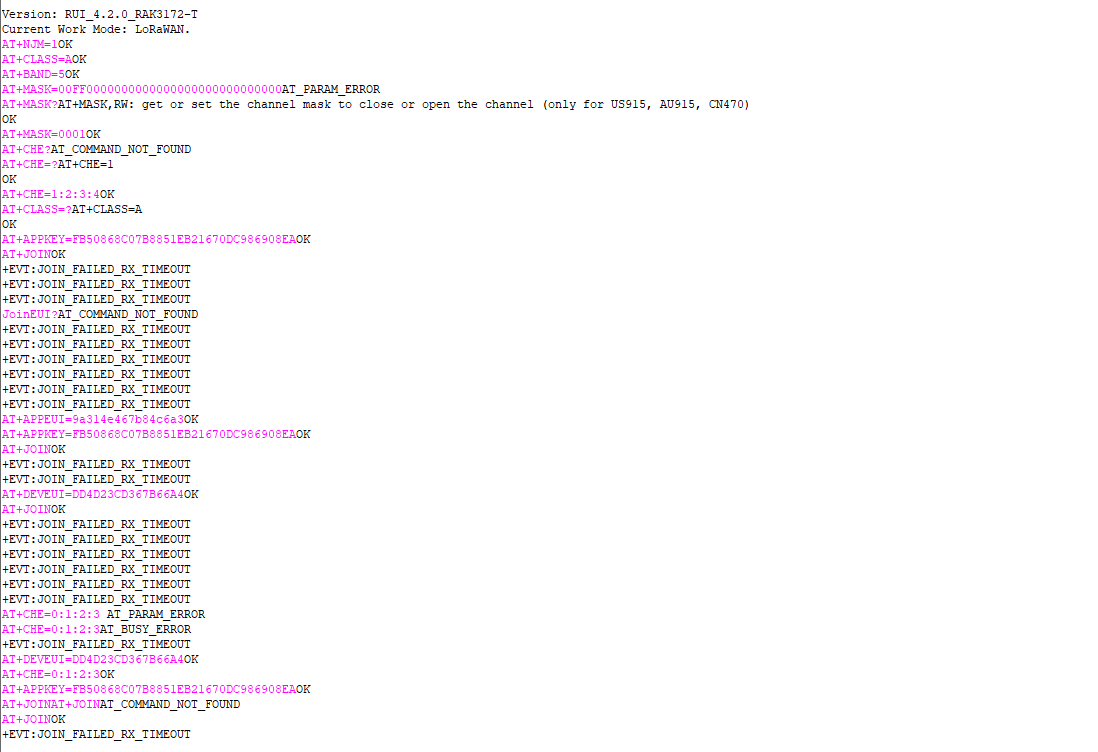

  timeOUT1098×752 16.8 KB

beegee · April 26, 2025, 2:36am

Confusing information

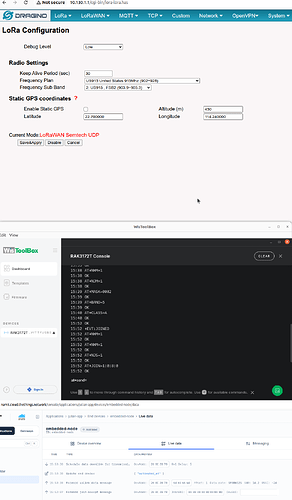

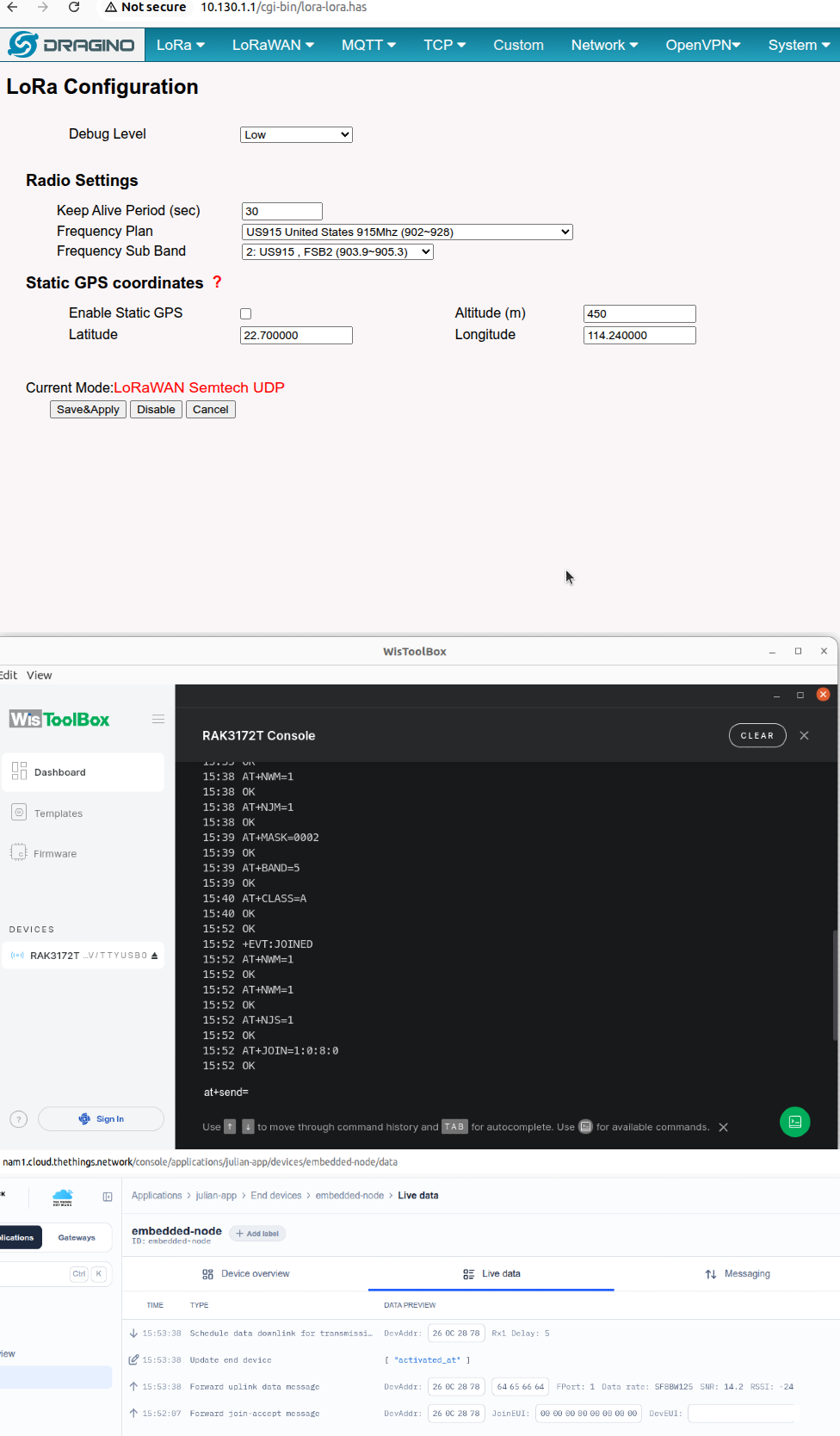

subband 0 would be channels 0-7

channels 8-15 would be subband 1

Your node is setup to channels 0-7, not for channels 8-15
You Chirpstack is setup to channels 8-15, not to channels 0-7

Make sure all devices are setup to the same channels, the RAK3172, the gateway and your LNS.
